نام محصول:

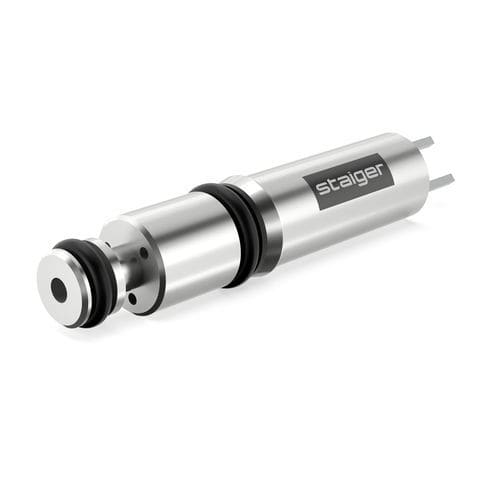

شیر میکرو
نام انگلیسی:
Micro valve VA 209-002 E 05 SAP 12/00 609-00-046
برند:
Staiger GmbH & Co. KG
مشخصات:
5 mm-Valve
– Very small footprint and size
– Precise flow rates
– Low power consumption
– Large pressure range
Technical Data
Function: 2/2 NC
Pneumatic connection: cartridge
Electrical connection: pins
Media type: hydrogen, air, oxygen, inert gases
Media quality: ≤ 10 µm
Orifice: 0.6 mm
Operating pressure: 0…5 bar(g)
Max. flow (air | @ 5 bar(g) | @ 20 °C): 11,5 ls/min ± 1 ls/min
Flow coefficient kv: up to 0.130 l/min
Flow coefficient Cv: up to 0.009 gallons/min
Temperature range, ambient: -10 °C to 60 °C
Temperature range, media: -10 °C to 60 °C
Temperature range, storage-30 °C to 80 °C
Internal leakage @ pmax: < 1 ml/min
External leakage @ pmax:< 1 ml/min
Nominal coil resistance @ 20 °C: 226 Ω
Nominal voltage: 12 V
Nominal power consumption @ 20 °C: ~ 0.6 W
Duty cycle (without flow): 100 %
Weight: ~ 2.4 g
Mounting position: any direction
Life time in cycles: 100,000,000 cycles
Materials in contact with medium
Metallic materials: 1.4105, 1.4305, 1.4310
Seals: FKM
Others: PDFE coating
توضیحات:
Type
cartridge
Body
seat, micro, stainless steel
Number of channels
2/2-way
DN
0.6 mm(0.024 in)
Temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
