نام محصول:
شیر مکش
نام انگلیسی:
Suction valve VSS series
برند:
VUOTOTECNICA
مشخصات:

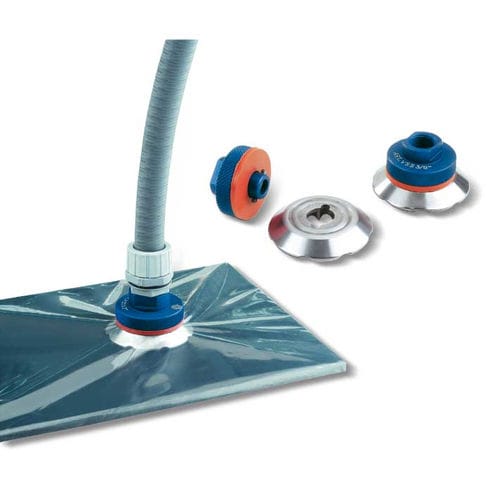

Suction valves for vacuum press bags
The suction valves described on this page have been designed for a quick vacuum connection on press bags for composite fibre products.
These valves are composed of a steel distributor, to be inserted inside the bag, equipped with a cam housing suitable for the quick coupler for the vacuum connection. The latter is made with reeded and anodised aluminium and is easily coupled with the distributor by simply rotating it on its axis by 90°, once it has been inserted.
A silicone seal, to be placed between the two elements and the press bag, guarantees a perfect vacuum seal. Manual two-way valves, quick couplers or simply flexible pipe fittings can be assembled onto these valves.
They are currently available in the two versions indicated in the table, but can be provided in different sizes and shapes upon request for a minimum amount.
Maximum temperature of use: 220 °C
توضیحات:
Operation
manual
Applications
for vacuum press bags
Number of channels
2-way
Associated function
suction
DN
0.375 in, 0.5 in
Temperature
220 °C(428 °F)
Flow rate
10 m³/h, 20 m³/h(353.15 ft³/h, 706.29 ft³/h)
