نام محصول:
شیر محرک پیستون
نام انگلیسی:
Piston actuator valve 2103
برند:
BÜRKERT FLUID CONTROL SYSTEMS
مشخصات:

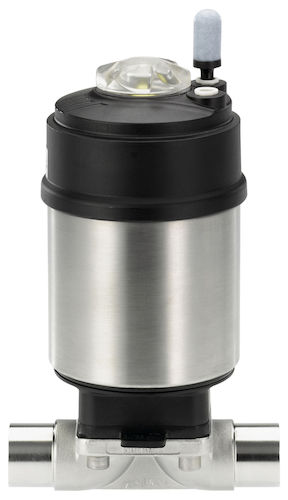

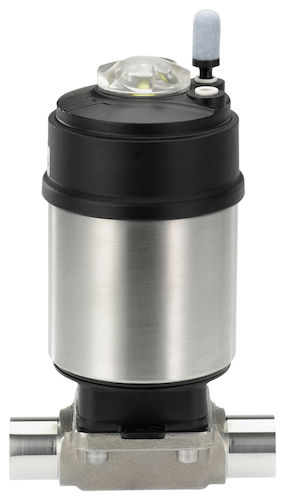

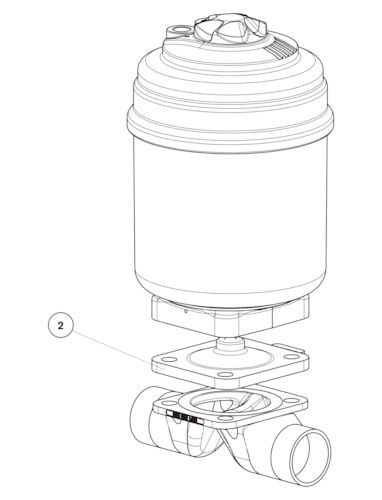

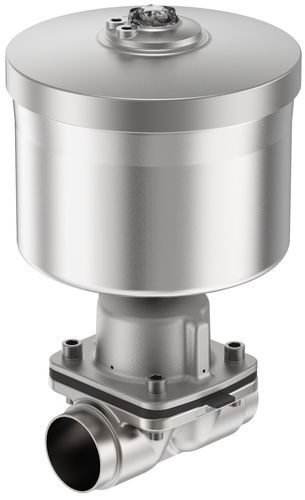

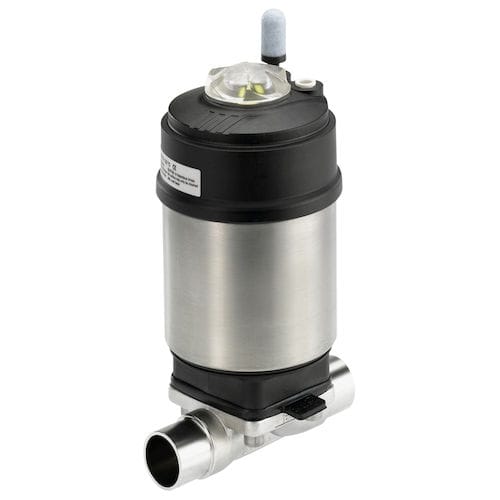

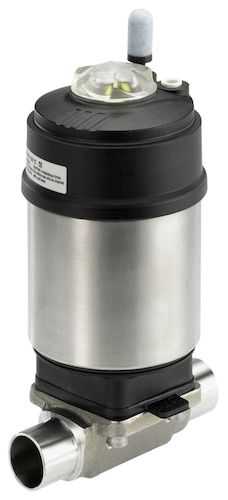

The externally controlled diaphragm valve Type 2103 consists of a pneumatically operated piston actuator, a diaphragm and a 2-way valve body. The proven and robust actuator with stainless steel housing ensures use in hygienic or aggressive ambient conditions. The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses. The valve body and the diaphragm are available in all common materials and variants. The actuator has a compact, autoclavable design with a large stainless steel housing and gap-free seals. The integration of automation units Type ELEMENT is possible in all configuration levels (can be retrofitted); a fieldbus interface can also be integrated. An explosion-proof ATEX / IECEx device variant is available. It is a compact, smooth-surfaced and highly integrated system consisting of a valve and an automation unit with integrated pilot air ducts (no intake of ambient air). The add-on body is optionally available in plastic or stainless steel (can be rotated 360°). The valve offers the degrees of protection IP65/67 and NEMA Type 4X and displays high chemical resistance.
Valve body and diaphragm are available in various materials and variants
Product wetted surfaces in Ra ≤ 0.38 µm…1.6 µm (optionally electropolished)
Available in all common connection sizes and variants
توضیحات:
Type
piston actuator
Operation
pneumatically-operated
Media
for natural gas
Body$
weld, chemical-resistant, explosion-proof, IP65, IP67
Applications
hygienic
Material$
stainless steel
Number of channels
2/2-way
Other characteristics
compact, with actuator, aseptic, IECEx, ATEX
DN
Min.: 4 mm(0.157 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 143 °C(289 °F)
Flow rate
Min.: 1 m³/h(35.31 ft³/h)Max.: 52 m³/h(1,836.36 ft³/h)
