نام محصول:

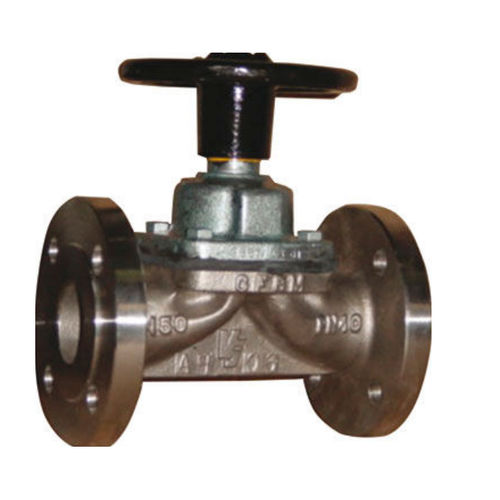

شیر دیافراگم
نام انگلیسی:
Diaphragm valve VSK
برند:
Valvulas VS, S.L.
مشخصات:
Advantajes of diaphragm valves are: resisting to corrosion and abrasion, absoluta watertigh and litle cost for maintenance.
Seal is done by a membrane that´s pressed by a special pattern embólus against a curve surface seat.
Althoug it´s a vertical seat valves, the lost of pressure is minimum in due to the pattern of body and the membrane´s bend.
A lot of kinds of materials for the body covered or not, and the differents qualitys of membranes are the reason for these valves can work
even in the most difficults conditions.
MATERIALS:
BODY: Cast Iron, cast iron covered with ebonite; rubber, Neopreno, halar stainless steel.
MEMBRANES: Natural rubber, Neopreno, EPDM, Butilo, Perbuna, Hypalon, Viton and Teflon.
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
for control
Body$
flange
Material$
EPDM, stainless steel, cast iron, rubber
Other characteristics
DIN, corrosion-resistant, vertical
DN
Min.: 0.5 inMax.: 12 in
Pressure
4 bar, 6 bar, 10 bar(58 psi, 87 psi, 145 psi)
