نام محصول:
شیر دیافراگم
نام انگلیسی:

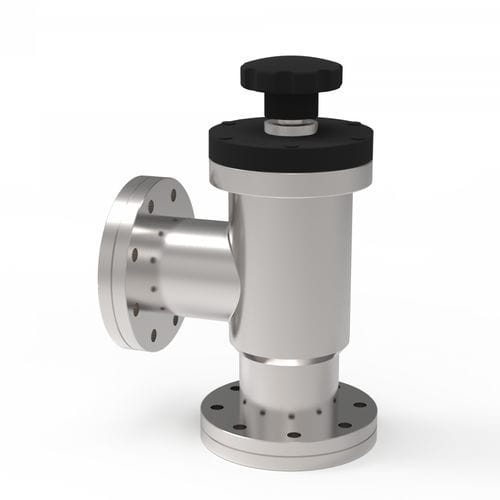

Diaphragm valve 4AVM-63CF-MV-S
برند:
VACOM
مشخصات:
Category – Angle valve, manual, CF, stainless steel
Actuation – manual via hand wheel
Item description – UHV angle valve, series 4
flanges: DN63CF
bonnet: stainless steel
actuator: Hand wheel
pressure range: 1,0E-10 mbar – 1bar
bonnet seal: Metal
plate seal: FKM
working temperature: 150°C
Actuator temperature
max.: 200°C
Bakeout temperature – 200 °C
Article no. – 409903
Connection type – CF
Min. operating temperature – 5 °C
Max. operating temperature – 150 °C
Length – 102 mm
Valve plate seal material – FKM
Side length – 105 mm
Purity class – PCS
Rotary connection – 1
Minimal pressure – 1E-9 mbar
Service life (cycles) – 100000
Valve plate seal – FKM
Housing – Stainless Steel
Housing seal – OFHC
Connection type 2 – CF
توضیحات:
Type
diaphragm
Operation
manual
Applications
actuator
Material$
stainless
Associated function
service
DN
63 mm(2.48 in)
Pressure
0 mbar(0 psi)
