نام محصول:

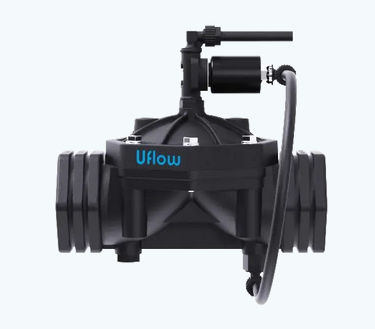

شیر دیافراگم
نام انگلیسی:
Diaphragm valve ENN series
برند:
UFLOW AUTOMATION
مشخصات:
> Port: Refer below technical data sheet (Available BSPT / NPT)
Main Features: Internai Parts are in superior corrosion résistance Steel, Suitable for irrigation.
coil features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Other Spécification Data: Available on Request
توضیحات:
Type
diaphragm
Operation
pilot-operated
Media
for water
Body$
threaded, lockable
Applications
irrigation
Material$
steel, rubber, nylon
Other characteristics
normally closed, corrosion-resistant, with seal, normally open
DN
1.5 in, 2 in, 2.5 in, 3 in, 4 in
Pressure
Min.: 1 bar(14.5 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 60 °C(140 °F)
Flow rate
60 m³/h, 70 m³/h, 80 m³/h, 90 m³/h, 190 m³/h(2,118.88 ft³/h, 2,472.03 ft³/h, 2,825.17 ft³/h, 3,178.32 ft³/h, 6,709.79 ft³/h)
