نام محصول:
شیر دیافراگم
نام انگلیسی:

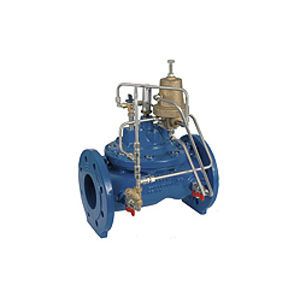

Diaphragm valve HM-SV
برند:
Tecnidro
مشخصات:
EXCESSIVE FLOW VALVE
The valve avoids reservoir emptying and flooding dues to casual pipeline failure. The valve is controlled by a differential hydraulic pilot that senses flow speed closing completely main flow when senses critical speed values.
TYPICAL APPLICATIONS
Distribution networks with wide diameter pipelines or higl level variations.
توضیحات:
Type
diaphragm
Operation
hydraulic
Function
flow control, pilot, distribution, flow control
Media
for water
Body$
flange, threaded
Applications
for industrial applications, for the food industry
Other characteristics
ISO, DIN, ANSI, with internally-threaded connectors
DN
Min.: 50 mm(1.969 in)Max.: 600 mm(23.622 in)
Pressure
25 bar(362.6 psi)
Flow rate
Min.: 16 m³/h(565.03 ft³/h)Max.: 5,400 m³/h(190,699.2 ft³/h)
