نام محصول:
شیر دیافراگم
نام انگلیسی:

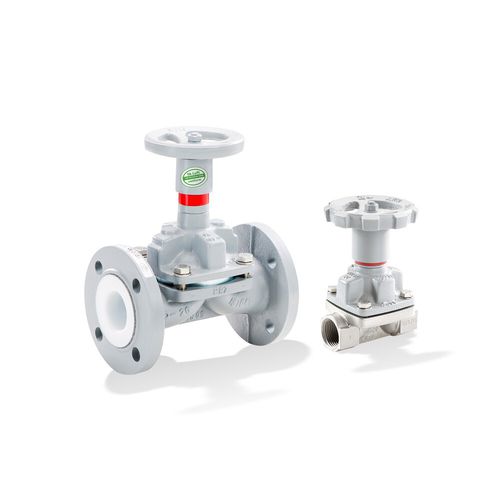

Diaphragm valve SISTO-20 series
برند:
SISTO Armaturen S.A.
مشخصات:
Weir-type diaphragm valve to DIN/EN with flanged ends, threaded socket ends or socket weld ends, in straight-way pattern; shut-off and sealing to atmosphere by supported and confined diaphragm; body with coating or lining, position indicator with integrated stem protection. All moving parts are separated from the fluid by the diaphragm. Maintenance-free.
Technical Data
Function: Shut off/control flow
Connection type:
Internal-thread connection,
Flange,
Butt weld ends,
Socket weld ends
Design concept Drive:
With electric actuator,
With handwheel,
With pneumatic actuator
Casing material
EN-GJS-400-18-LT,
GX5CRNIMO19-11-2
Nominal pressure: PN 16
Max. nominal size: DN 200
Min. nominal size: DN 15
Max. allowed fluid temperature: 160 °C
Min. allowed fluid temperature: -20 °C
Main Applications
Mining
General irrigation systems
Chemical industry
Homogenisation
Industry/process engineering
Industrial recirculation systems
Waste water treatment plants
Air-conditioning systems
Condensate transport
Fossil-fuelled power stations
Power stations
Cooling circuits
Paint shops
Seawater desalination/reverse osmosis
Mining
Paper industry / pulp industry
Petrochemical industry
Refinery
Flue gas desulphurisation
Shipbuilding
Swimming pools
Process engineering
Heat recovery systems
Hot-water heating systems
Water treatment
Water extraction
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
flow control, shut-off
Media
for water, for oil, for chemical products, for liquid food products and beverages, for gas, for air
Body$
double-flange, PTFE-lined
Applications
for the chemical industry, for the food industry, beverage
Fluid specification
for aggressive media, for abrasive fluids
Other characteristics
DIN, flue gas
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Pressure
16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 160 °C(320 °F)
