نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve SISTO-20
برند:
SISTO Armaturen S.A.
مشخصات:

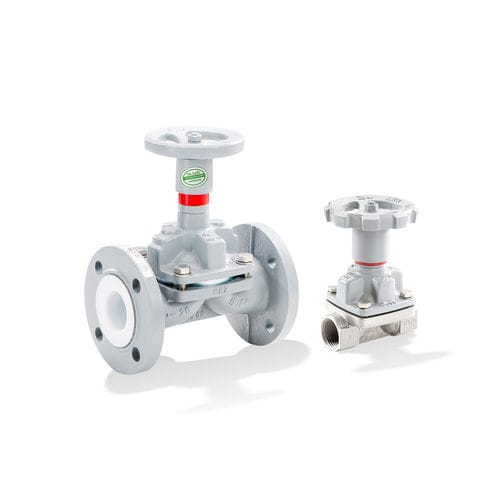

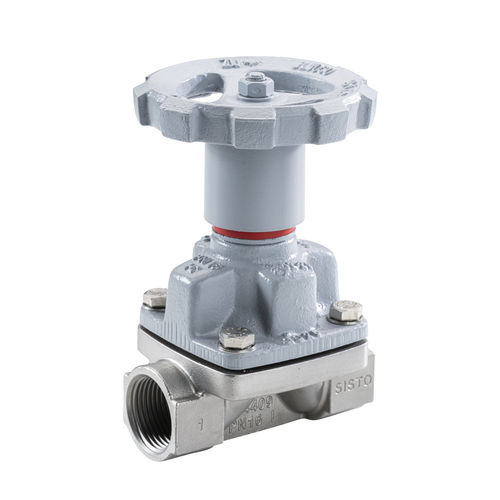

Weir-type diaphragm valve to DIN/EN with flanged ends, threaded socket ends or socket weld ends, in straight-way pattern; shut-off and sealing to atmosphere by supported and confined diaphragm; body with coating or lining, position indicator with integrated stem protection. All moving parts are separated from the fluid by the diaphragm. Maintenance-free.
Main Applications
Mining
General irrigation systems
Chemical industry
Homogenisation
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
shut-off
Media
for water, for oil, for gas, for air
Body$
double-flange, threaded
Applications
for the chemical industry, for the food industry, process, for oil industry applications, irrigation
Material$
stainless steel, cast iron
Fluid specification
for aggressive media, for abrasive fluids
Other characteristics
DIN, socket weld, through-conduit
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 160 °C(320 °F)
