نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve 6052
برند:
Schubert & Salzer Control Systems GmbH
مشخصات:

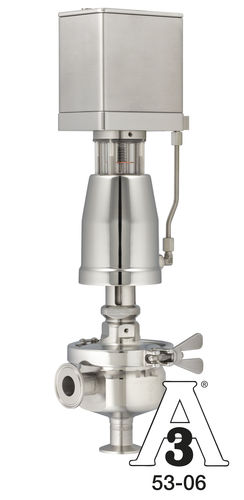

The 3A-compliant hygiene right angle valve type 6052 with integrated positioner was specially developed for applications in the dairy industry, but also in food and beverage production. The 6052, available in nominal sizes DN15 to DN50, meets the highest requirements for purity and control quality. All wetted parts comply with FDA and regulations (EG) 1935/2004 and (EU) 10/2011.
Size:
DN 15 – DN 50
Pressure:
PN 16
Material:
Body: Stainless steel 1.4435
Diaphragms: EPDM diaphragm with PTFE-foil
Temperature:
Media temperature: -20 °C up to +140 °C
Connection –
Welding ends ASME BPE OD-tubing
Clamp connection acc. ASME-BPE
Positioner –
Digitaler positioner type 8049
– 2-wire, 4-wire
– Ex-Pro explosion-proof
– IO-Link
– Integrated process controller IPC
Without positioner for shut-off function
Positioner variants –
Positioner in completely stainless steel design
Versions –
Wetted surface Ra< 0,6 µm
Wetted surface electropolished Ra< 0.4 µm optionally for body
توضیحات:
Type
diaphragm
Operation
pneumatically-operated
Function
for control, shut-off, regulating
Media
for water, beverage, for dairy products
Body$
right-angle
Applications
for the food industry, beverage, for hygienic applications, for dairy products, sanitary
Material$
stainless steel
Other characteristics
ISO, aseptic, with tri-clamp connection, with integrated positioner
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Max.: 16 bar(232.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 140 °C(284 °F)
