نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve TOPAZ
برند:
PVA PSchwimmerventile GmbH
مشخصات:

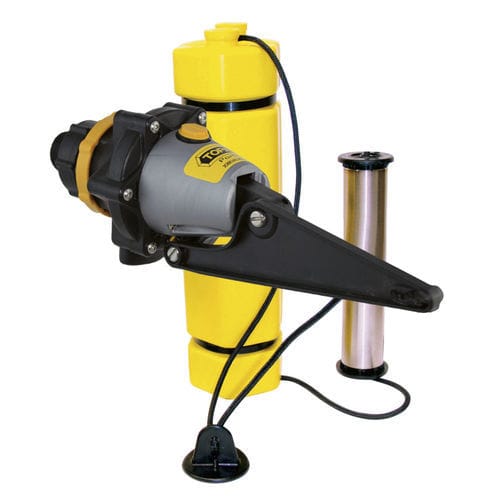

Topaz differential float valve ideal for use in water tanks that are filled with a pressure pump that should only refill at a minimum level.
TOPAZ differential valves are the ideal valve for water tanks in pressurised systems. The float valve with diaphragm offers a high flow rate of up to 200 l/min. Furthermore, an adjustable level control from 50 mm up to 2500 mm is possible. This minimises the number of start-stop operations of the pump system and ensures minimal pump operation.
Available as ROJO float valve for connection at low pressure!
توضیحات:
Type
diaphragm
Operation
float
Function
level control
Media
for water
Applications
for tanks, for pump
Material$
ABS, EPDM, nylon
Other characteristics
with seal, high-flow
DN
0.75 in, 1 in
Pressure
Max.: 10 bar(145 psi)Min.: 1 bar(14.5 psi)
Temperature
Max.: 60 °C(140 °F)Min.: 0 °C(32 °F)
Flow rate
210 l/min, 270 l/min(55.48 us gal/min, 71.33 us gal/min)
