نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve CARZ
برند:
NEDERMAN
مشخصات:

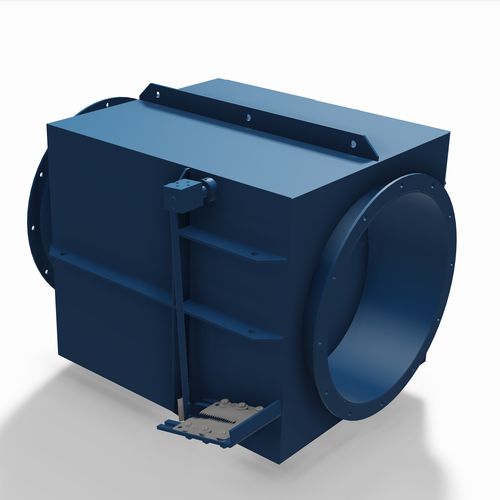

Explosion Isolation Flap Valve CARZ – protective system.
Explosion Isolation Flap Valve type CARZ is design as explosion pressure resistance equipment, which is able to prevent a transmission of dangerous effects of explosion pressure wave and flames front to upstream areas.
Description
Welded construction in RAL 5009 blue painted steel plate or stainless steel with strong rubber seal, which is available upon request.
Function
During air flow generated by main fan, the Flap plate is open. In case of an explosion in the downstream equipment (e.g. dust collector) a pressure wave will force to close the Flap plate and lock in position. Large opening angle ensure low pressure drop. When Flap plate is closed it makes an effective barrier against approaching flame front. This prevent the explosion from being transmitted to upstream work areas.
توضیحات:
Type
diaphragm
Operation
manual
Function
isolation
Body$
flange
Other characteristics
ATEX
DN
Min.: 160 mm(6.299 in)Max.: 1,000 mm(39.37 in)
Pressure
0.9 bar, 1 bar(13.1 psi, 14.5 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 70 °C(158 °F)
