نام محصول:
شیر دیافراگم
نام انگلیسی:

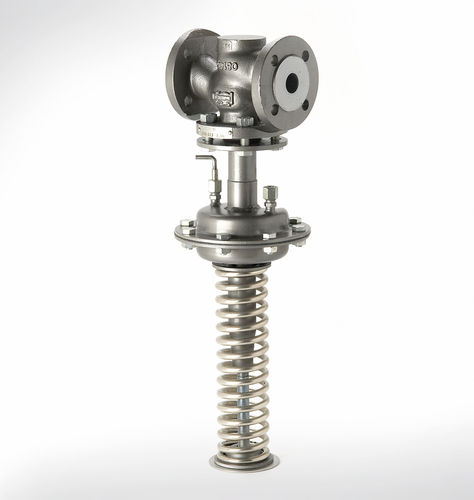

Diaphragm valve DM 603
برند:
MANKENBERG GmbH
مشخصات:
single-seat straight-way valve for high flow rates with balanced cone | highest temperatures up to 350 °C | usable for steam | body made of GS-C25 or CrNiMo-steel | steel / stainless steel, stainless-steel-diaphragm body, very precise thanks to a large number of different control ranges
توضیحات:
Type
diaphragm
Function
pressure-reducing
Media
for steam
Other characteristics
for high flow rates
DN
Min.: 15 mm(0.591 in)Max.: 150 mm(5.906 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 40 bar(580.2 psi)
Temperature
250 °C(482 °F)
Flow rate
Min.: 4 m³/h(141.26 ft³/h)Max.: 160 m³/h(5,650.35 ft³/h)
