نام محصول:
شیر دیافراگم
نام انگلیسی:

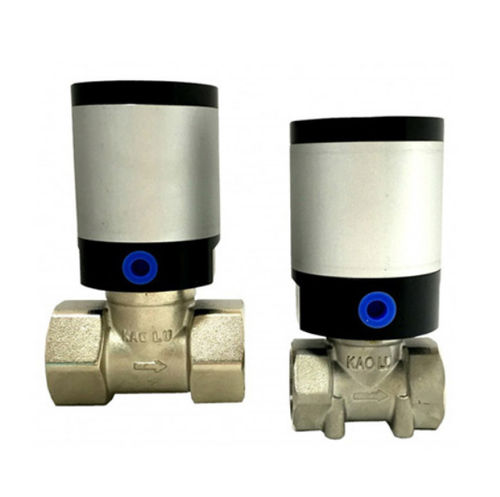

Diaphragm valve ZQ22HD series
برند:
Genn Dih
مشخصات:
Pneumatic control (cylinder) valve, also known as B-type valve, the cylinder directly drives the valve plate, seal material Viton or Teflon-PTFE selections.
Long life, high flow, resistant to air pollution, can replace copper rotating cylinder valve or diaphragm valve.
Product Feature
Long Life, High Flow, High Speed, tolerable to contaminated air.
Body material: brass or stainless steel 304. Seal: Viton or PTFE.
توضیحات:
Type
diaphragm
Operation
pneumatic
Function
for control
Media
for water, for air
Applications
for liquids, cylinder, plate
Material$
brass, PTFE, stainless steel, copper
Other characteristics
high-flow, high-speed
DN
Min.: 12 mm(0.472 in)Max.: 44.3 mm(1.744 in)
Pressure
3 bar(43.5 psi)
Temperature
Min.: -5 °C(23 °F)Max.: 100 °C(212 °F)
Flow rate
Min.: 3.4 m³/h(120.07 ft³/h)Max.: 44 m³/h(1,553.85 ft³/h)
