نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve 660
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:

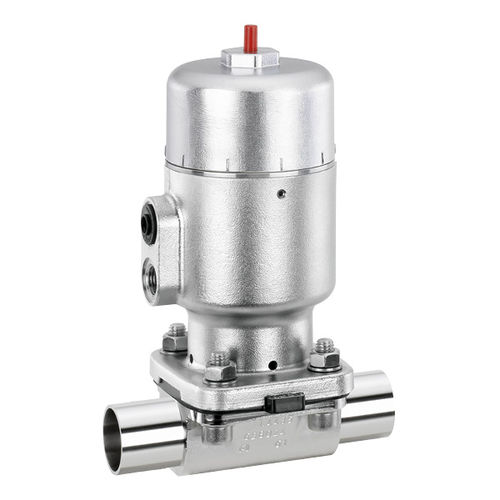

The GEMÜ 660 2/2-way diaphragm valve has a stainless steel piston actuator and is pneumatically operated. The valve was designed for dosing and filling a wide range of products. All metallic actuator components are made of stainless steel. Normally closed (NC), Normally open (NO) and Double acting (DA) control functions are available. A stroke limiter and seal adjuster and an optical position indicator are integrated as standard.
Easily adjustable, integrated opening stroke and closing stroke limiter
Precise stroke scale (10 scale points per turn) on the actuator top
High level of reproducibility of the flow rates thanks to distance sleeves integrated in the shut-off diaphragms
Fast cycle duties due to minimized filling volume
Body configurations: 2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration
Connection types: Clamp | Flange | Spigot | Threaded connection
Connection standards: ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS
Body materials: 1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material
Diaphragm materials: EPDM | PTFE/EPDM
Conformities*: 3A | BSE/TSE | CRN | EAC | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP
توضیحات:
Type
diaphragm
Operation
pneumatically-operated
Function
for control, shut-off, dosing
Media
for steam
Body$
flange, threaded
Applications
actuator
Material$
EPDM, PTFE, stainless steel, metal
Number of channels
2/2-way
Associated function
filling
Other characteristics
ISO, ANSI, standard, DIN, normally closed, double-acting, normally open
DN
Min.: 4 mm(0.157 in)Max.: 25 mm(0.984 in)
Pressure
Min.: 0 bar(0 psi)Max.: 5 bar(72.5 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 100 °C(212 °F)
