نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve 650TL
برند:
GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG
مشخصات:

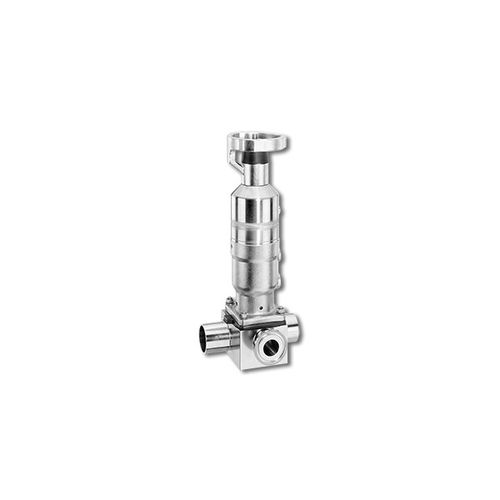

Diaphragm valve – 650TL
Diaphragm valve GEMÜ 650TL is a manual tapping valve with automatic closing function which is pneumatically operated. The “keep-closed” override of manual operation is via a stainless steel handwheel. The valve can only be operated (opened / closed), if a control medium is applied to the actuator. When the control medium supply is switched off, the valve closes and can no longer be operated manually.
– Hermetic separation between medium and operator
– Ergonomic handwheel
– Additional pneumatic actuator for closing from a central control system
– CIP/SIP capable
– Optional flow direction and installation position
Body configurations: 2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration
Connection types: Clamp | Flange | Spigot | Threaded connection
Connection standards: ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS
Body materials: 1.4435 (316L), block material | 1.4435 (316L), forged material | 1.4435 (BN2), block material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material
Diaphragm materials: EPDM | PTFE/EPDM
Conformities*: CRN | EAC | FDA | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP
توضیحات:
Type
diaphragm
Operation
manual, pneumatic
Function
for control
Body$
threaded
Material$
EPDM, PTFE, stainless steel
Number of channels
2/2-way
Other characteristics
ISO, ANSI, DIN, automatic
DN
Min.: 4 mm(0.157 in)Max.: 25 mm(0.984 in)
Pressure
Min.: 0 bar(0 psi)Max.: 8 bar(116 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 100 °C(212 °F)
