نام محصول:
شیر دیافراگم
نام انگلیسی:

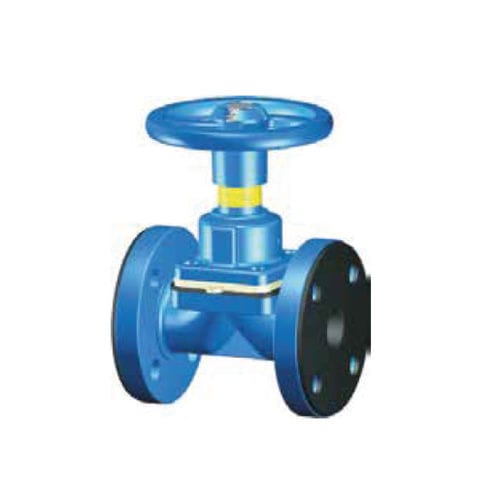

Diaphragm valve DV
برند:
FLAPCON VALVES AND AUTOMATION SYSTEMS CO LTD
مشخصات:
Specifically suited to handle corrosive and general applications, it permits the larger options of linings and diaphragm grades to be combined. Given the shorter valve stroke, it is the preferred option to fluoropolymers lining and the only design suiting to PTFE diaphragms.
Flapcon DV Series Diaphragm Valves allow for more diaphragm cycles with less running and downtime costs, its pocketless design avoids line fluid contamination. Weir valves are the option when flow control is required.
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
flow control
Media
for chemicals, for gas, for steam
Body$
flange
Applications
abrasive
DN
Min.: 15 mm(0.591 in)Max.: 300 mm(11.811 in)
Pressure
10 bar(145 psi)
