نام محصول:
شیر دیافراگم

نام انگلیسی:
Diaphragm valve DKLDC – DIALOCK®

برند:
FIP – Formatura Iniezione Polimeri

مشخصات:

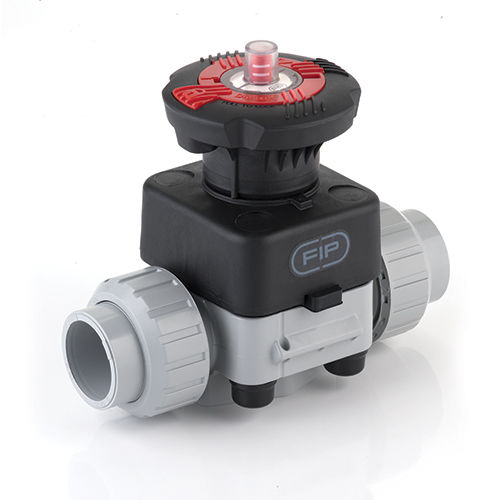

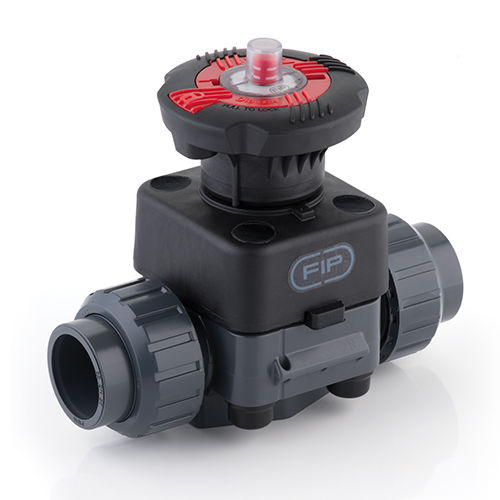

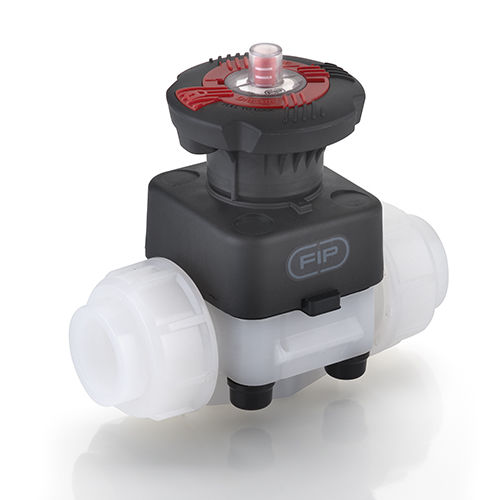

DIALOCK® diaphragm valve with stroke limiter and male ends for solvent welding, metric series.

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Main features:

High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring

Customisation plate: the customisation lets you identify the valve on the system according to specific needs

DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions

Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents

Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime

New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced

توضیحات:
Type
diaphragm

Operation
with handwheel

Function
adjustment, shut-off, regulating

Media
for water

Body
flange, threaded, weld, compact, PVC-U, PP, PVDF

Applications
abrasive

Number of channels
2-way

Other characteristics
compact, locking, for abrasive fluids

DN
Max.: 65 mm(2.559 in)Min.: 15 mm(0.591 in)

Pressure
10 bar(145 psi)

Temperature
Max.: 120 °C(248 °F)Min.: -20 °C(-4 °F)
