نام محصول:
شیر دیافراگم
نام انگلیسی:

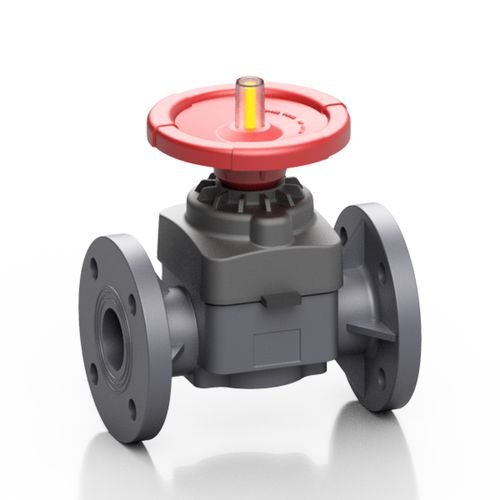

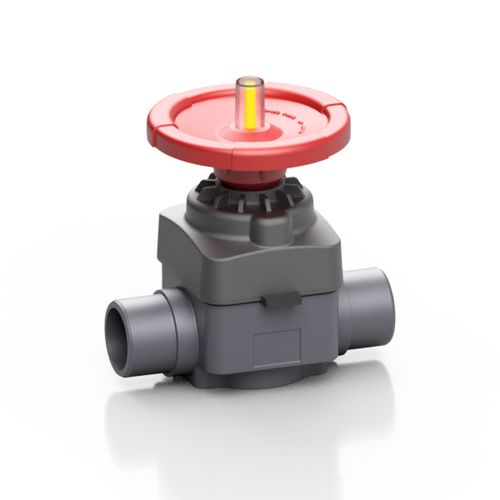

Diaphragm valve MV
برند:
Effast
مشخصات:
The MV diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids.
The chemical resistance of the valve is subject to the type of fluid, the temperature, the pressure, as well as the materials and seals of the valve.
Optimized pressure drop due to body design.
Stainless steel mounting inserts designed to support the valve. Same distance between the inserts for all DN.
Standard handwheel
EPDM, FPM, or PTFE diaphragm (EPDM backing).
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
for control, shut-off
Media
for water, for chemical products
Body$
flange, weld
Applications
for industrial applications, for the chemical industry, for liquids, for marine applications, for swimming pool
Material$
EPDM, PVC-U, PTFE
Number of channels
2-channel
Fluid specification
for abrasive fluids
Other characteristics
ISO, standard, chemical-resistant, with seal
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
10 bar(145 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
Flow rate
Min.: 6 m³/h(211.89 ft³/h)Max.: 46 m³/h(1,624.47 ft³/h)
