نام محصول:
شیر دیافراگم
نام انگلیسی:

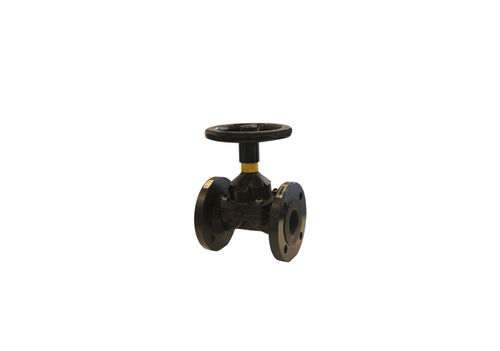

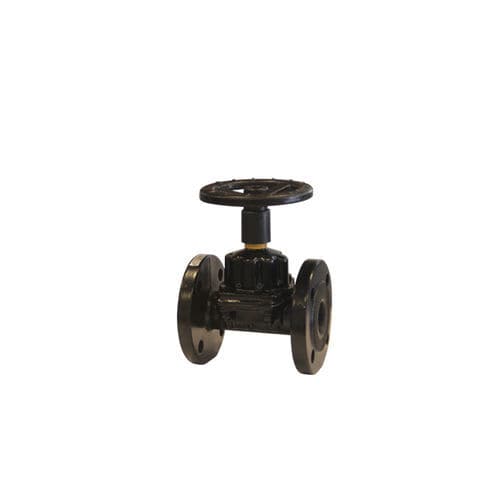

Diaphragm valve V401
برند:
Doruk Endustri Ltd.
مشخصات:
Ideally suited to be installed as a tight shut-off or control valve in lines particularly containing abrasive or corrosive chemicals,slurries,powders,gases and high viscosity liquids with suspended solids which tend to clog conventional valves.Face to Face dimensions are according to BS 5156(short-pattern) or DN3202-F1(long-pattern). Available as unlined or lined with flanged or threaded end connections.
Weir in the flow passage is designed to reduce the flexing of the diaphragm to a minimum,while providing a smooth and streamlined flow passage. Permits the use of a great variety of construction materials such as PTFE for the diaphragm. Unlike “Weir Type” diaphragm valves , valves with “Straight Through” flow passage require a more flexible diaphragm,therefore the construction material for diaphragms is restricted to elastomers.
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
for control, shut-off
Media
for sludge, for gas
Body$
flange, threaded
Applications
for high-viscosity products, for powders, for abrasive products
Material$
stainless steel, carbon steel
Fluid specification
for powders
Other characteristics
solids
DN
Min.: 15 mm(0.591 in)Max.: 300 mm(11.811 in)
Pressure
Min.: 4 bar(58 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 180 °C(356 °F)
