نام محصول:
شیر دیافراگم
نام انگلیسی:
Diaphragm valve 2030
برند:
BÜRKERT FLUID CONTROL SYSTEMS
مشخصات:

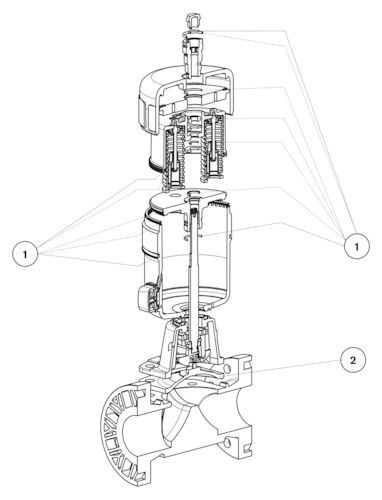

Externally controlled diaphragm valve with piston actuator and diaphragm seal. As standard, actuator from PA. The flow optimised and zero dead space valve body makes high flow rates possible.
Flow optimised and zero dead space body
Hermetical separation of the medium from the actuator by a diaphragm
Universal and robust actuators with modular accessory program
Self-draining plastic valve bodies with thread, socket, or flange connection
Suitable for aggressive and corrosive media
توضیحات:
Type
diaphragm
Operation
pneumatically-operated
Function
purge
Media
for natural gas
Body
flange, modular, plastic
Number of channels
2/2-way
Other characteristics
with actuator, rugged, for high flow rates, universal, with connection, for aggressive media
DN
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 80 °C(176 °F)
Flow rate
Min.: 3 m³/h(105.94 ft³/h)Max.: 43 m³/h(1,518.53 ft³/h)
