نام محصول:
شیر دیافراگم
نام انگلیسی:

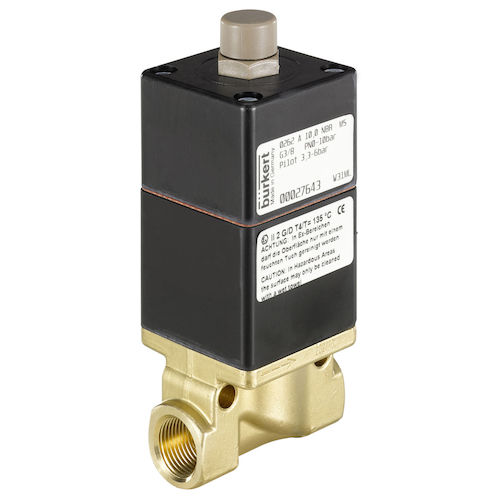

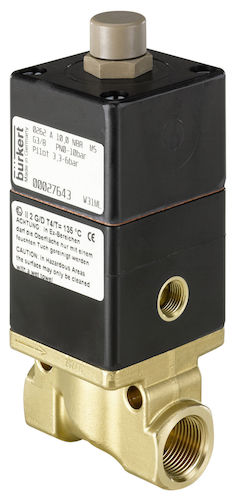

Diaphragm valve 0262
برند:
BÜRKERT FLUID CONTROL SYSTEMS
مشخصات:

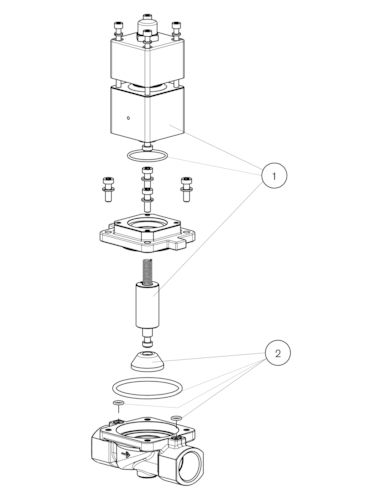

The externally piloted 2-way valve is operated by a diaphragm actuator. A double spindle seal guarantees high tightness and a high service live. The compact actuator housing is made out of chemical resistant plastic and ideal for customer specific multifunction block solutions. This low maintenance and robust valve can be supplemented by a large accessory program.
Stainless steel or brass body with threaded connection
High service live
Variant for steam applications available
توضیحات:
Type
diaphragm
Operation
pneumatically-operated
Media
for fuel, for steam
Body$
threaded
Material$
brass, stainless steel
Number of channels
2/2-way
Other characteristics
compact, normally closed, with actuator, normally open
DN
10 mm, 12 mm, 20 mm, 25 mm(0.394 in, 0.472 in, 0.787 in, 0.984 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)
Flow rate
1 m³/h, 2 m³/h, 7 m³/h(35.31 ft³/h, 70.63 ft³/h, 247.2 ft³/h)
