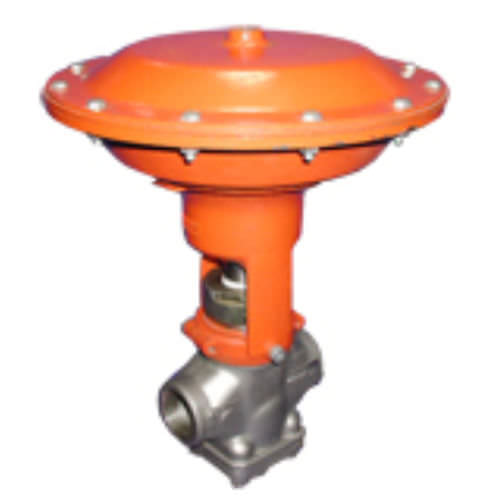

شیر دیافراگم – Avcon Controls PVT. Ltd. – Diaphragm valve 7412 B series

نام محصول:
شیر دیافراگم

نام انگلیسی:
Diaphragm valve 7412 B series

برند:
Avcon Controls PVT. Ltd.

مشخصات:
2/2 Way Pneumatic Diaphragm Operated Normally Closed Valves
Screwed Female End Type Body For High Duty,
On-Off Application
Body and End Piece: Investment Casted ASTM-A,
351CF8 (St.St. 304)/CF8M(St.St. 316)
For control of air, water, oil, gas, steam, hydraulic oil specially where heavy duty operations are called for, specially on tyre and tube building presses, power generation, atomic energy, chemical & petrochemical plant, PSA nitrogen system, air and gas dryers, gas generators and others.

توضیحات:
Type
diaphragm

Operation
pneumatically-operated

Function
for control

Media
for water

Body$
female

Number of channels
2/2 way

Other characteristics
normally closed

DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)

Pressure
Min.: 2 bar(29 psi)Max.: 42 bar(609.2 psi)

Temperature
Min.: 180 °C(356 °F)Max.: 205 °C(401 °F)

Flow rate
Min.: 3 m³/h(105.94 ft³/h)Max.: 36 m³/h(1,271.33 ft³/h)
