نام محصول:
شیر دیافراگم

نام انگلیسی:

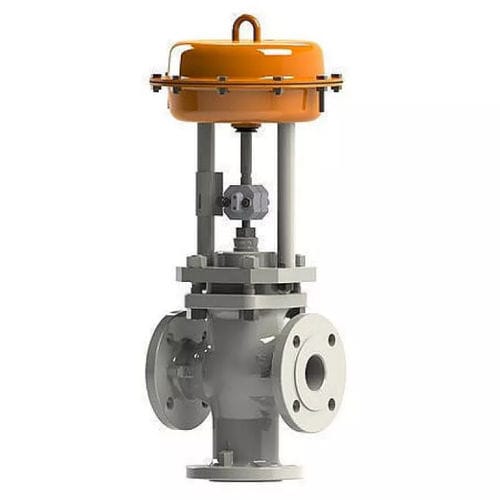

Diaphragm valve CTV-THW

برند:
Athena Engineering S.r.l.

مشخصات:
– Has functions of dividing one-way flow into two-way flow or combining two-way flow into one-way flow.

– Has features of S-shape passageway、cage-guided、quick-disassemble seat and integral design, ideal for heat exchanger to adjust temperature.

– In constant flow applications, the bi-directional ports of a 3 way control valve allow water to bypass the coil or load through mixing or diverting.

– An actuator is used to force an upward and downward movement of the valve’s plug which works to open and close off the different ports to redirect pressure and flow.

As mentioned earlier, 3 port control valve can be used solely for opening or closing a passage, or for modulating and precisely controlling the flow and temperature of the process. In comparison 2-way valves are the most cost-effective choice for diverting and mixing applications.

توضیحات:
Type
diaphragm

Operation
pneumatically-operated, electrically-actuated

Function
for control, shut-off, drain

Media
for oil, for petroleum, for gas, for steam

Body$
flange, seat

Applications
for the petroleum industry, for the chemical industry, process, for pipelines, for heating, for the paper industry, cryogenic, for the mining industry, for gas turbines, refinery, power line, for boiler

Material$
steel, alloy, stainless, carbon steel

Number of channels
3-way

Associated function
reducing

Other characteristics
ISO, full-flow, emergency, integral, modulating, bypass, pneumatic piston, fire-safe, ATEX

DN
Min.: 1.5 inMax.: 12 in

Pressure
Min.: 16 bar(232.1 psi)Max.: 100 bar(1,450.4 psi)
