نام محصول:
شیر دیافراگم
نام انگلیسی:

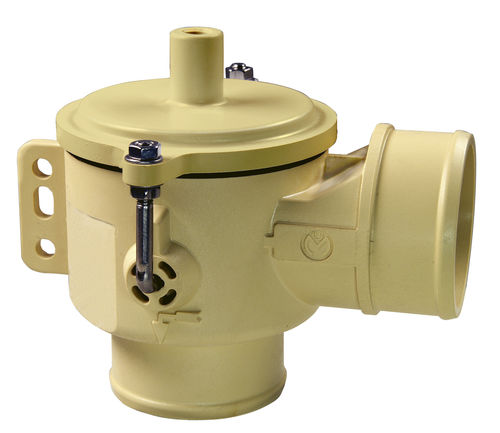

Diaphragm valve 04.040.113
برند:
A. u. K. Müller
مشخصات:
2/2-way direct acting drain valve of nominal diameter DN 40 for controlling low aggressive liquid media, such as cleaning or disinfection agents.
Valves of this type are medium separated having a single chamber valve body with the inlet at ninety degrees to the outlet. They can be manufactured in various materials and equipped with threaded or hose connections.
Valve housing made of PPE or stainless steel are suitable for hot water. Valve housing made of PVDF have a higher resistance to chemicals where stainless steel has both features.
The smooth internal shape improves liquid flow and avoids dirt traps. The valve bodies can be equipped with an additional flush spout.
Applications
Industrial washing machines and dishwashers
Cleaning devices for medical equipment
Cleaning and disinfecting systems in the dairy industry and process engineering
Characteristics
Direct acting
Long term performance capability
High operating safety through the use of high quality materials and 100% final testing of the products
Suitable for spray- and jet water
Vacuum controlled
Works from zero pressure
Technical data
Construction single chamber valve
Function NC, closed without vacuum
mode of operation direct acting
Fitting position any, preferably with coil upwards
Media low aggressive media, such as cleaning or disinfection agents within potable water
control vacuum 30 – 60 kPa abs.
-0,4 – -0,7 bar rel.
توضیحات:
Type
diaphragm
Operation
manual
Function
drain
Media
for hot water, for chemical products
Body$
threaded
Applications
industrial, for the food industry, process, for vacuum, for medical applications
Material$
stainless steel, PP, PVDF
Number of channels
2/2-way
Fluid specification
for aggressive media
Other characteristics
chemical-resistant
DN
40 mm(1.575 in)
Pressure
Min.: 0 bar(0 psi)Max.: 0.6 bar(8.7 psi)
Temperature
Min.: 5 °C(41 °F)Max.: 90 °C(194 °F)
