نام محصول:
شیر توزیع
نام انگلیسی:

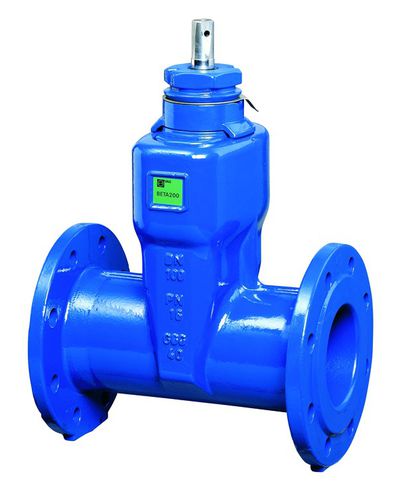

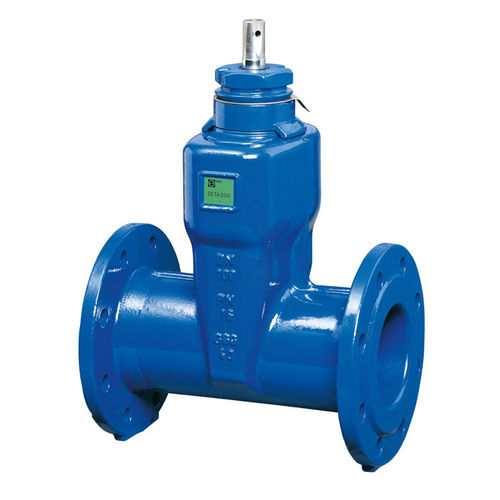

Distribution valve BETA® 200
برند:
VAG-Group
مشخصات:
Resilient-seated gate valve with boltless cover connection and face-to-face length of Basic Series 15. Proven design with innovative improvements, such as plastic sliding caps on the wedge, guarantee low operating torques even after many years of use. Suitable for water-treatment applications, water distribution, in dams, power plants, industry and in pressure management.
Product features and benefits
– Resilient seated in accordance with EN 1074 (DIN 3352 – 4B)
– Face-to-face length acc. to EN 558-1, basic series 15 (DIN 3202, F5)
– With flange ends on both sides acc. to EN 1092-2
– Boltless bonnet with pressure supported sealing system
– Low operating torque due to plastic sliding guides on the wedge
– Maintenance-free and corrosion-resistant stem sealing
– With O-ring sealing
– Low wear due to wedge guiding and elongated stem bearing
– Suitable for vacuum of up to 90%
توضیحات:
Type
gate
Operation
manual
Function
distribution
Media
for water
Body$
flange, seat
Applications
industrial, for vacuum, for water systems
Material$
brass, stainless steel, iron
Other characteristics
DIN, corrosion-resistant
DN
Min.: 40 mm(1.575 in)Max.: 300 mm(11.811 in)
Pressure
10 bar, 16 bar(145 psi, 232.1 psi)
Temperature
50 °C(122 °F)
