نام محصول:
شیر توزیع
نام انگلیسی:

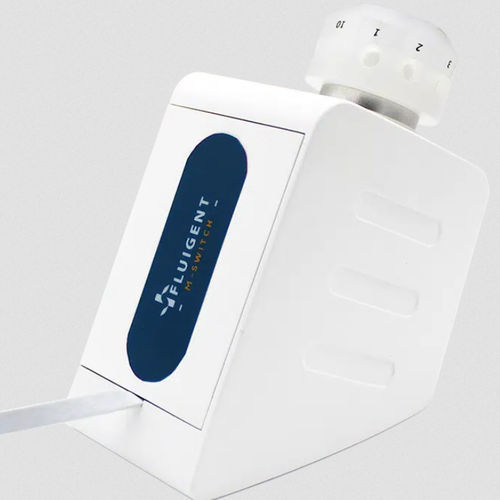

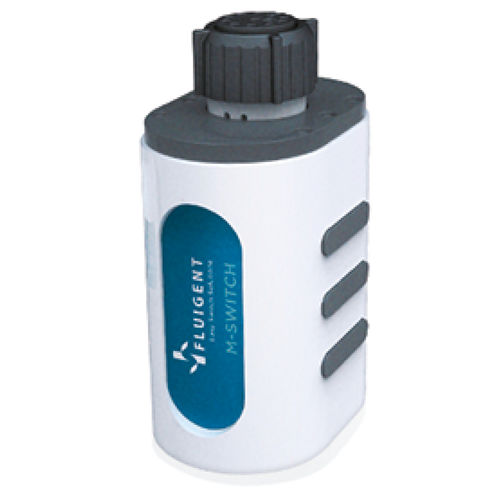

Distribution valve M-SWITCH™
برند:
FLUIGENT
مشخصات:
The M-SWITCH™ is a bidirectional 11-port/10-position microfluidic valve for injection or selection of up to 10 different fluids or chips. The flow is bidirectional in the valve. The device can be used as a selector or as a distributor for either multiplexing or demultiplexing purposes.
*Automation
Valve actuation timing
*Compact
Uses minimum bench space
*Quick
Actuation & Response time
*Accurate
Low internal volume
Features
11-port/10-position
Any of the peripheral ports (numbered from 1 to 10) can be connected to the central channel, and the fluidic path created is bidirectional. The M-SWITCH™ is actuated by a motor that drives a rotor. It can also be used with a manifold to use a single pressure pump to deliver multiple liquids and simplify set-ups.
Sample generation & collection
Different concentrations of the molecule of interest can be injected into a chip generating water in oil droplets. The droplets can then be sorted at the outlet of the chip using the M-SWITCH™ depending on their analyte concentrations. Each step can be automated using OxyGEN software.
Sequential injections
Up to 10 liquidscan be selected sequentially to be delivered to a chip by the M-SWITCH™. The samples at the outlet of the chip may also be sorted by using a 2-SWITCH™ either into a collection tube or to waste. Each step can be automated using OxyGEN software.
Automation
The valve can be controlled by OxyGEN software for long-term experiments. Create a time-based protocol to set actuation timing of the valve(s).
توضیحات:
Operation
manual
Function
distribution, selector
Media
for chemical products, for oxygen
Body$
compact, manifold
Applications
pump, motor
Number of channels
6-way and higher
Associated function
outlet, injection
Other characteristics
compact, bidirectional
Pressure
Min.: 0 bar(0 psi)Max.: 7 bar(101.5 psi)
