نام محصول:
شیر تسکین هیدرولیک
نام انگلیسی:
Hydraulic relief valve Prv series
برند:
Sunfab Hydraulics
مشخصات:

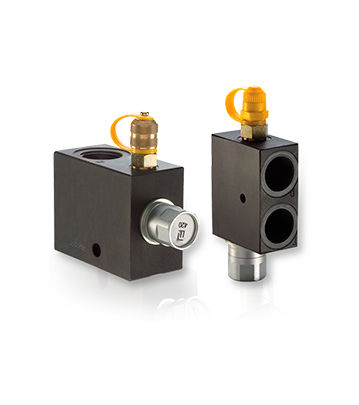

All hydraulic systems must be equipped with a pressure relief valve. Sunfab in-line mounted pressure relief valve Prv 32/42 protects the pump and hydraulic system.
Sunfab Prv 32/42 supports working pressures of 25,5-32/32–42 MPa and have a capacity for a flow of 150 l/min. Sunfab Prv 32/42 is mounted close to the pump to protect against pressure surges. Assembly is simplified by the through pressure connection at the same time as the need for adapters and nipples is minimised.
• Pressure gauge socket facilitates adjustment and trouble shooting on the hydraulic system
• Preset opening pressure of 320/420 bar
• Compact design
توضیحات:
Other characteristics
hydraulic, compact, in-line
Controlled pressure
Min.: 320 bar(4,641.2 psi)Max.: 420 bar(6,091.6 psi)
Flow rate
150 l/min(39.63 us gal/min)
Weight
1.2 kg, 2.6 kg(2.65 lb, 5.73 lb)
