نام محصول:
شیر برقی
نام انگلیسی:

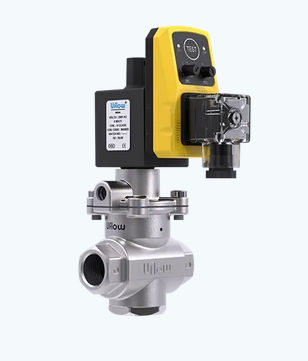

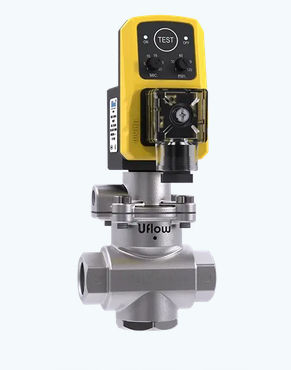

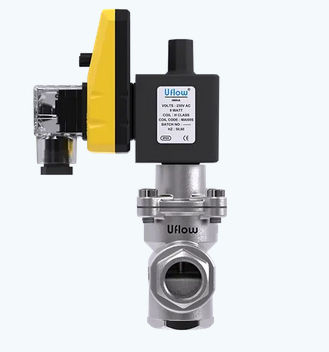

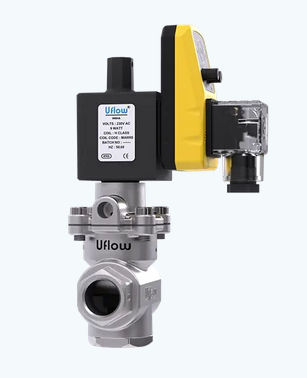

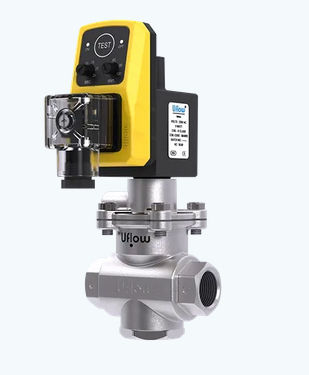

Pilot-operated solenoid valve AP2E125
برند:
UFLOW AUTOMATION
مشخصات:
> Main Features: Internai Parts are in superior corrosion résistance Steel
> Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.
Features
Easy to mount at ail locations.
Condensate discharging is no more problem.
On / Off timing adjustable –
Large orifice for effective drain of dust and condensate.
Maintains and cleans drain valves without removing from.
Design specially to drain sludge and rust laden condensate.
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, air, for chemical products
Body
screw-in, lockable, IP65, large
Other characteristics
high-flow, corrosion-resistant
DN
0.5 in
Voltage
12 V, 24 V, 230 V
Temperature
Max.: 180 °C(356 °F)Min.: -30 °C(-22 °F)
Pressure
Max.: 16 bar(232.1 psi)Min.: 0 bar(0 psi)
