نام محصول:
شیر برقی
نام انگلیسی:
Pilot-operated solenoid valve PLASTIC PILOT
برند:
Raphael Valves Industries (1975) Ltd
مشخصات:

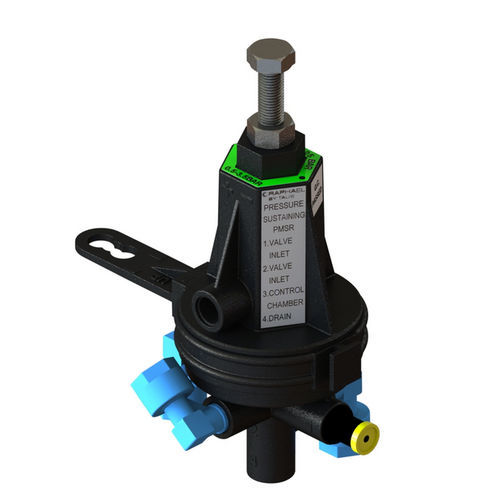

3 WAY PRESSURE AND FLOW PLASTIC PILOT CONTROL
The pressure and flow plastic pilot is a 3-way pressure pilot available in 3 différent versions:
PMR High performance pilot for pressure reducing control
PMSR Universal pilot to control valve as pressure reducing or pressure sustaining valve
PMF Flow control pilot
This pilot is specially design for irrigation application.
Two pilots can be combined together on a single valve to form a bi functional valve opération.
The pressure-regulating mode! is available in normal pressure or low-pressure configurations.
The pilot body is made of high quality reinforced plastic.
The screw located on top of the valve does the calibration of the pilot.
Equipped with four connections:
1. Sensor connection – Connected to valve outlet.
Conveys downstream pressure into the pilot.
2. Drain connection- Connected to atmosphere.
3. Command connection – Connected to valve control chamber.
4. Pressure connection- Connected to valve inlet.
PRESSURE REDUCING VALVE
Maintains a steady pressure after the hydraulic valve (downstream pressure) at varying flows and inlet (upstream) pressures.
توضیحات:
Control
pilot-operated
Ports/positions
3-way
Medium
for water
Body
plastic
Other characteristics
universal, control
DN
Min.: 1 inMax.: 4 in
Voltage
24 V
Temperature
50 °C(122 °F)
Pressure
10 bar(145 psi)
