نام محصول:
شیر برقی
نام انگلیسی:
Pilot-operated solenoid valve H
برند:
Parker Pneumatic Division Europe
مشخصات:

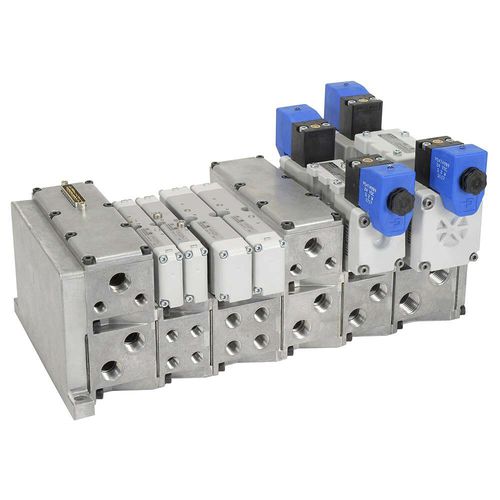

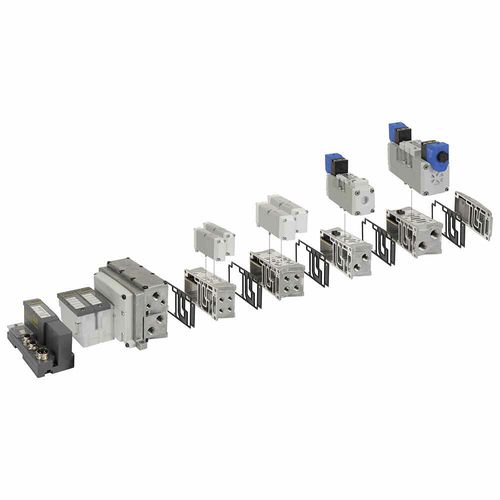

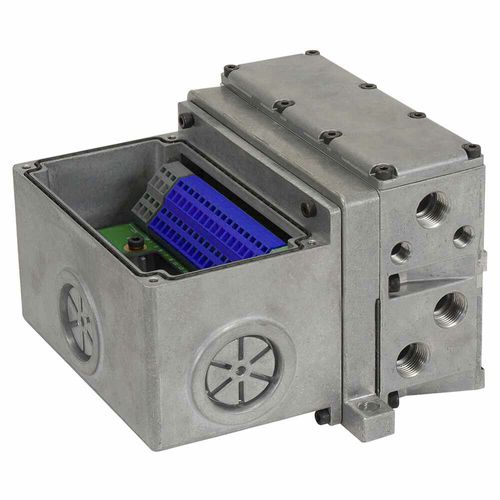

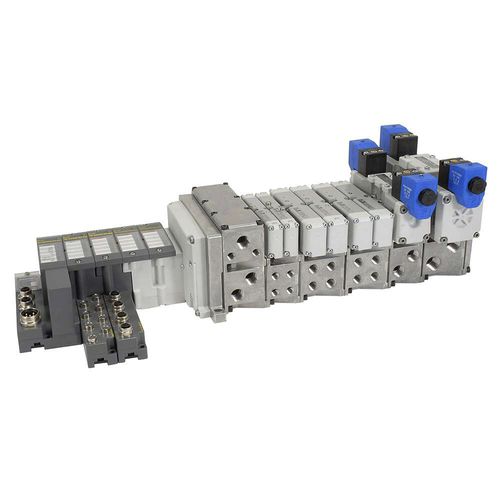

The H Series ISO valve is a family of base mounted valves available in five size ranges (ISO 15407 & 5599 – Sizes 01, 02, 1, 2 and 3) with a nominal flow Qn from 540 to 5890 Nl/mn. Available in both Plugin and non-plugin version, the product family is offered as 5/2 and 5/3 functions with a dual 3/2 NC or NO function available in size 02. The valve can be mounted individually as a single sub-base or mounted on a manifold. Used with the newly designed H Universal Manifold, it is possible to attach several sizes from 02 to 2 without a transition kit to right size the valve for the application with no wasted space. Additionally, its intermediate supply module allows the creation of multiple pneumatic zones in the manifold with the internal or external pilot pressure configurable to the application. The left end plate provides the convenience of multiple wiring options. Electrical connections for the plugin version can be made through the manifold using either hardwiring or collective wiring or industrial network technology including PROFINET IO, EtherCAT, POWERLINK, Ethernet/IP, Modbus/TCP, CC-Link IE, IO-Link and other traditional fieldbus protocols.
Markets:
• Automotive
• Factory Automation
• Heavy Industrial
Features/Benefits:
• Right sizing is the ability to use different size valves on one manifold without a transition kit to maximize cost savings and reduce space
• Pneumatic zoning allows for multiple pressure zones in one manifold for different working pressures
• ISO valve platforms, such as Parker H Series ISO, assures easy maintenance, replacement, or modifications in the future
• Ability to build a high density manifold up to 32 addressable solenoids
توضیحات:
Control
pilot-operated
Ports/positions
5-way
Function
NC, NO
Medium
air
Body
manifold, with sub-base
Other characteristics
ISO, universal
DN
0.5 in
Voltage
24 V, 120 V
Temperature
Min.: -15 °C(5 °F)Max.: 50 °C(122 °F)
Pressure
10 bar(145 psi)
