نام محصول:
شیر برقی
نام انگلیسی:
Pilot-operated solenoid valve SV series
برند:
Nutork Corp.
مشخصات:

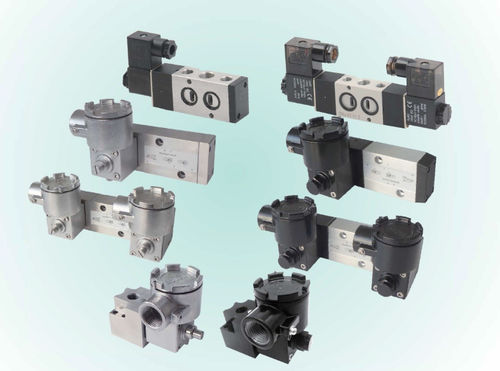

NUTORK SV series solenoid valve includes 5 types of valve body for option – SV100,
SV200 direct-acting valve body and SV300, SV400, SV600 pilot-acting valve body. When
equipped with different coils, for example standard waterproof coil, flame-proof coil,
intrinsically safe coil or encapsulated explosion-proof coil, it can meet different
requirements of normal working conditions and a variety of special working conditions, such
as explosive atmosphere.
Features：
1. Precision cartridge design of spool and seals.
2. Namur and in-line connection for option.
3. Screw-driver type manual-override available
as standard.
4. Low power consumption, single/dual
(mono/bi-stable) coils optional for pilot
operated solenoid valve.
5. 3/2 NC & 5/2 way convertible for single
acting spring return and double acting pneumatic
actuators.
6. Hard anodised Aluminium Alloy or Stainless Steel body for different applications.
7. PA, Aluminum Alloy or Stainless Steel coil with DIN or M20*1.5 cable entry.
8. Standard working temperature of -25 ℃ to +80 ℃.
Special request for high temperature +150℃ and low temperature -40℃ applications
also available
توضیحات:
Control
pilot-operated
Ports/positions
3/2-way
Function
NC
Medium
air
Body
in-line, NAMUR, waterproof, stainless steel
Other characteristics
standard, explosion-proof, intrinsically safe, spool
Voltage
24 V
Temperature
Max.: 60 °C(140 °F)Min.: -25 °C(-13 °F)
Pressure
Max.: 10 bar(145 psi)Min.: 2 bar(29 psi)
