نام محصول:
شیر برقی
نام انگلیسی:

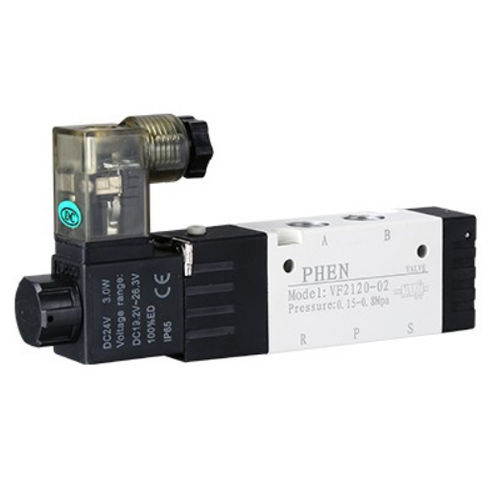

Pilot-operated solenoid valve PVF
برند:
Ningbo Phen Automation Co., Ltd
مشخصات:
Working meduium – Clean air(After 40 pm filteration )
Acting type – Internal pilot type
Reset type – Spring reset+Gas reset
Lubrication – Not required
Working pressure(MPa) – 0.15-0.8
Guaranted pressure (MPa) – 1.2
Working temperature (MPa) – -20~70(No freezing)
Voltage range (MPa) – -15%-10%
Power consumption (*C) – DC:3.0W; AC:4.0VA
Insulation class – Class F
Protective class – IP65(DIN40050)
Max.acting frequency – (2position): 5(Cycles/s); (3Position): 3(Cycles/s)
Activate time (S) – <0.05
توضیحات:
Control
pilot-operated
Ports/positions
5-way
Medium
air
Body
IP65
Other characteristics
spring
DN
0.125 in, 0.25 in, 0.375 in
Voltage
Min.: 12 VMax.: 110 V
Temperature
Min.: -20 °C(-4 °F)Max.: 70 °C(158 °F)
Pressure
Min.: 1.5 bar(21.8 psi)Max.: 8 bar(116 psi)
