نام محصول:
شیر برقی
نام انگلیسی:

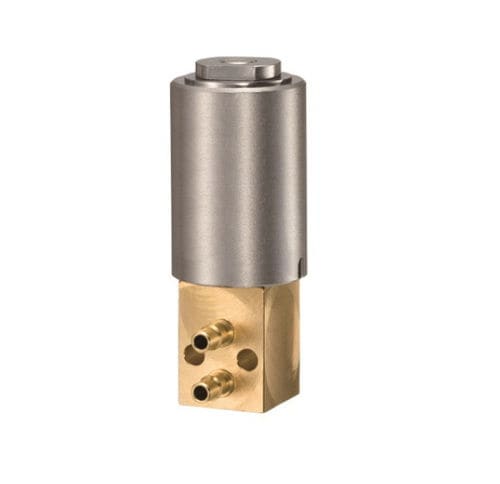

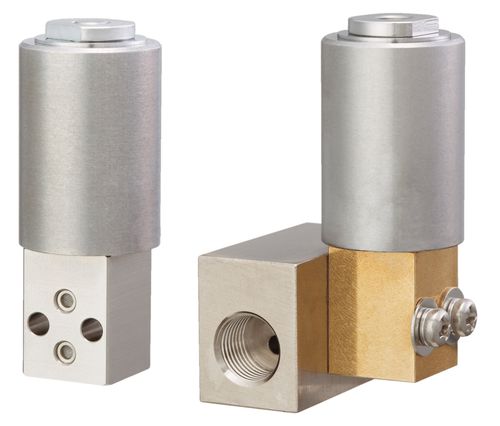

Pilot-operated solenoid valve 30 series
برند:
KOFLOC Corp.
مشخصات:
A needle valve is the typical flow control valve that controls the flow rate based on the change of resistance of the flow channel using an acicular or rod-shaped needle to adjust the opening of the flow channel that functions as a small orifice. KOFLOC offers simple-type, precision-type and various other needle valves, and also manufactures flow controllers having a combination of a needle valve and diaphragm as well as proportional solenoid valves that electrically control the flow rate.
Fluid：N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
Ultra-compact, lightweight and single power source.
Low power consumption (max. 2 W).
Hysteresis not exceeding 15%.
توضیحات:
Control
pilot-operated
Ports/positions
2/3-way
Medium
for gas
Body
compact, small
Other characteristics
proportional, low power consumption, plunger, needle, high-performance
DN
0.08 mm, 0.28 mm, 0.5 mm, 0.75 mm, 1.3 mm(0.003 in, 0.011 in, 0.02 in, 0.03 in, 0.051 in)
Voltage
Max.: 24 VMin.: 7 V
Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
Pressure
400,000 Pa, 600,000 Pa, 980,000 Pa(58 psi, 87 psi, 142.1 psi)
