نام محصول:
شیر برقی
نام انگلیسی:

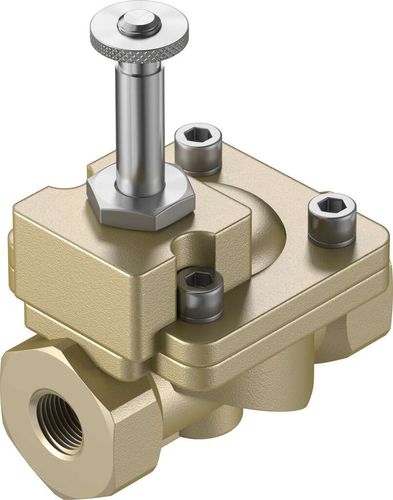

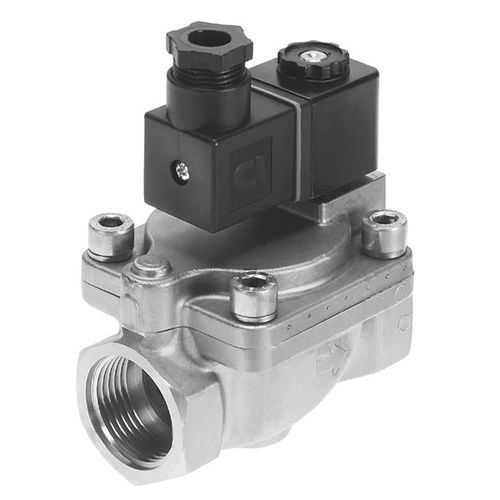

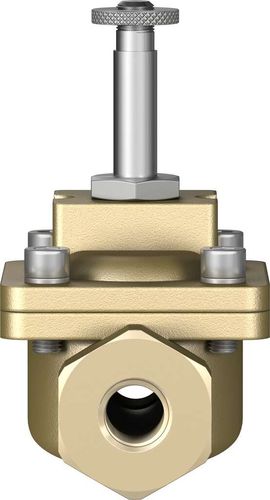

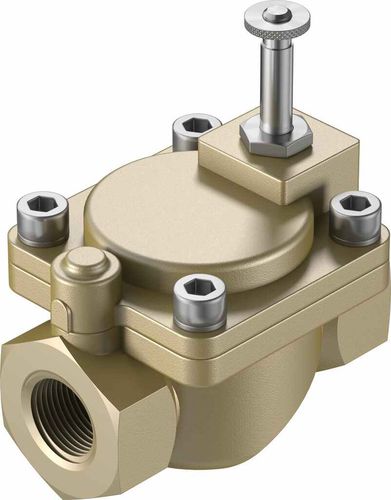

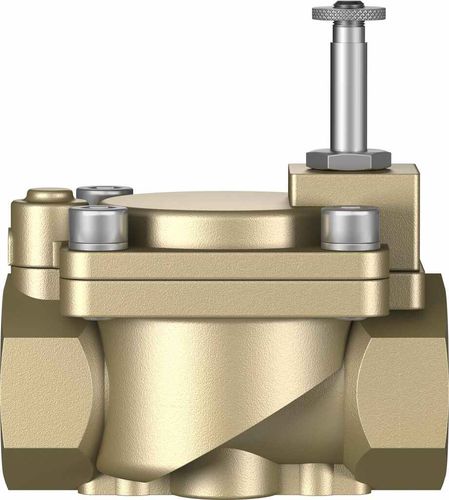

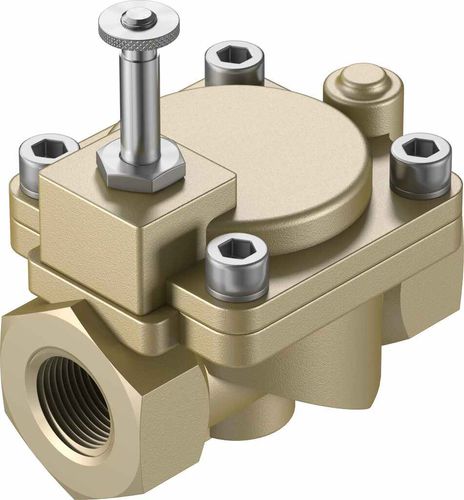

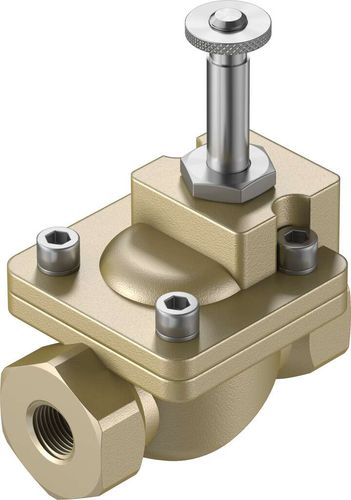

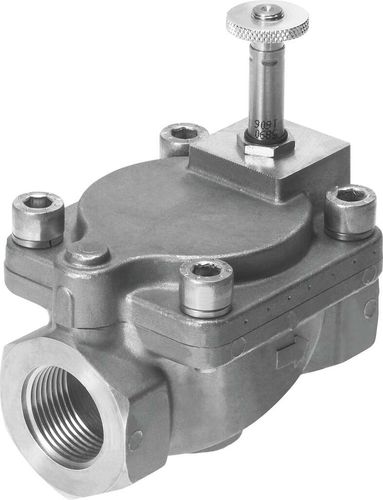

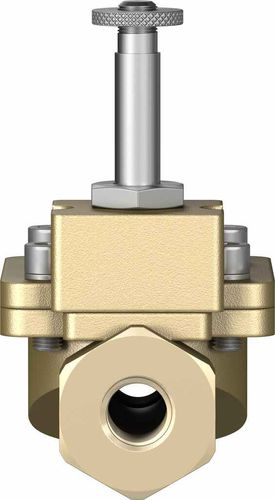

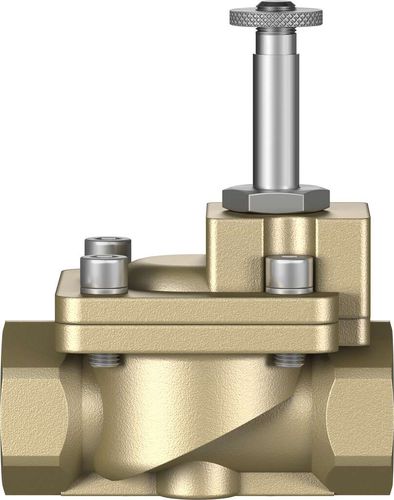

Pilot-operated solenoid valve VZWM series
برند:
FESTO
مشخصات:
The poppet valve with diaphragm seal for control of air or water is suitable for all-purpose use with either medium.
• Brass or stainless steel casting design
• Electrical connection via solenoid armature tube
• Wide range of coils
• Coil can be ordered separately
• Indirectly actuated poppet valve
with diaphragm seal
• Pipe connection G14 … G2
• Flow rate 1400 … 31000 l/min
• Available in brass or stainless steel casting
• Wide range of coils
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, for gas, oil
Body
IP65, stainless steel, brass
Process connection
G 1/4, G 1/2, G 3/4, G 1, G 3/8, G 1 1/4
Other characteristics
electrically-operated, universal, corrosion-resistant, plug, membrane, spring-return
DN
Max.: 50 mm(1.969 in)Min.: 13 mm(0.512 in)
Voltage
24 V, 110 V, 230 V
Temperature
Max.: 60 °C(140 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 10 bar(145 psi)Min.: 0.5 bar(7.3 psi)
