نام محصول:
شیر برقی
نام انگلیسی:

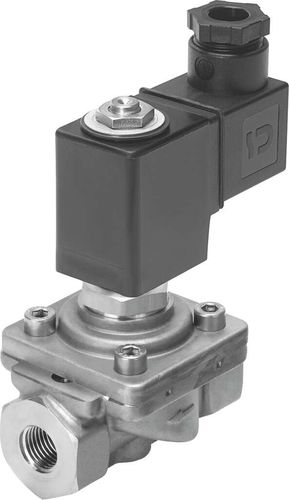

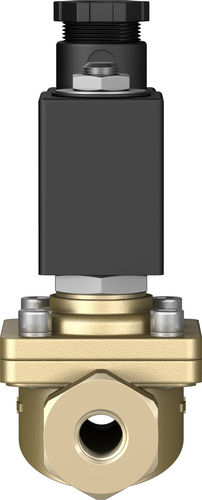

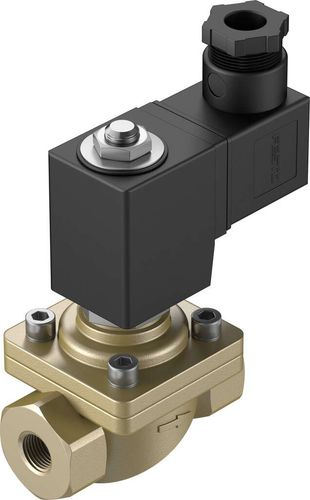

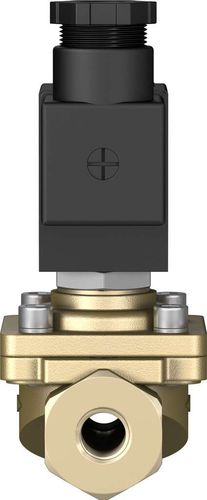

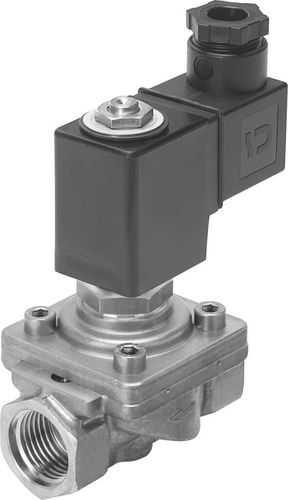

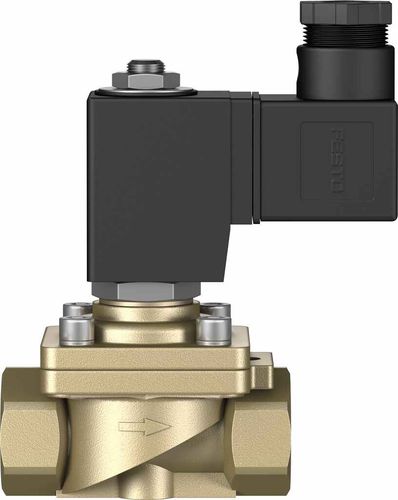

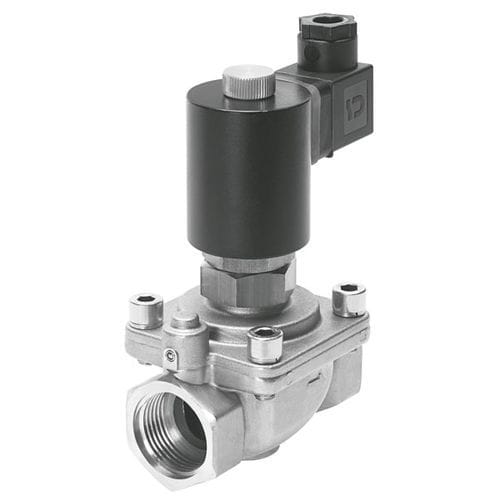

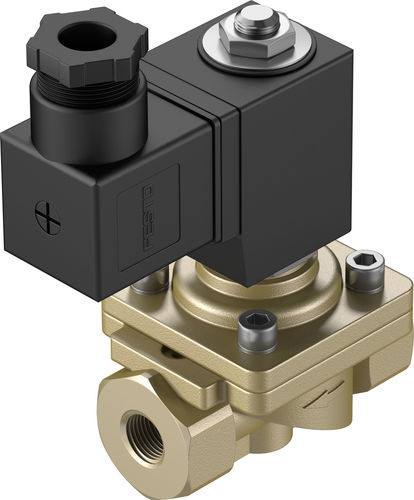

Pilot-operated solenoid valve VZWF
برند:
FESTO
مشخصات:
Can also be used in closed media circuits with no differential pressure: force pilot operated pneumatic valves VZWF control high pressures with high nominal diameters using relatively small solenoids.
• High flow rates
• Large nominal diameters with relatively small solenoids
• No pressure difference required
• Can also be used in vacuum technology
Normally closed solenoid valve withdiaphragm and forced lifting. When thesolenoid is energised, the differentialpressure from the secondary side ofthe diaphragm is reduced via aninternal pilot hole. The effectivedifferential pressure lifts thediaphragm away from the valve seat. Ifthere is no differential pressure, thediaphragm is lifted directly by thesolenoid. The valve opens and closeswithout a differential pressurebetween the inlet and outlet.
Application
• Suitable for closed applications such as cooling or filling systems
• Vacuum
• Liquid gas
• Filling systems
Design
• Diaphragm valves
• Forced lifting of the valve diaphragm
• 2/2-way valve, normally closed
Advantages
• Choice of sealing materials for different fields of applications
• Pressure of medium: 0 bar or higher
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, for gas, oil
Body
threaded, stainless steel, brass
Process connection
G 1/4, G 1/2, G 3/4, G 1, G 3/8, G 1 1/4
Other characteristics
high-flow, for corrosive environments, plug, membrane
DN
13.5 mm, 27.5 mm, 40 mm, 50 mm(0.531 in, 1.083 in, 1.575 in, 1.969 in)
Voltage
24 V, 110 V, 230 V
Temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 10 bar(145 psi)Min.: 0 bar(0 psi)
