نام محصول:
شیر برقی
نام انگلیسی:

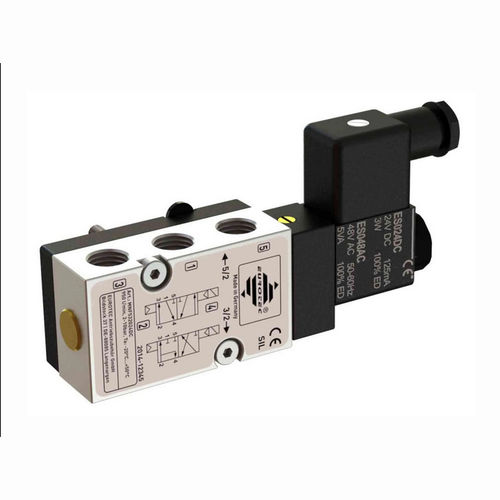

Pilot-operated solenoid valve MNF532
برند:
EUROTEC Antriebszubehör GmbH
مشخصات:
Our monostable NAMUR solenoid valves are suitable for direct assembly to your pneumatic rotary actuator. Thanks to its practical reverse sealing, you will get 3/2 as well as 5/2 way function combined in one solenoid valve, a feature that will make the storing also easy. This way, you can regulate not only spring return but also double acting pneumatic actuators with the same solenoid valve.
HodeU Mode! – MNF532
Magnctvcntiltyp Solenoid valve type – NAMUR, Kolbenschieber, Luftfederrückslellung, indirekt gesteuert NAMUR. piston spool, air spring relurn. indirectly operated

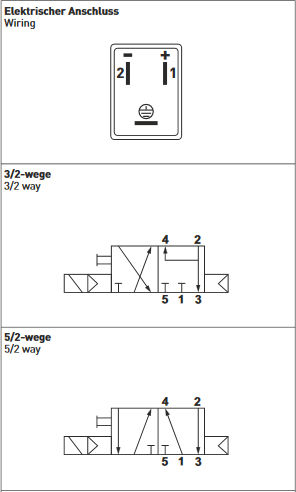

Funktion Function – 5/2- & 3/2-wegc way

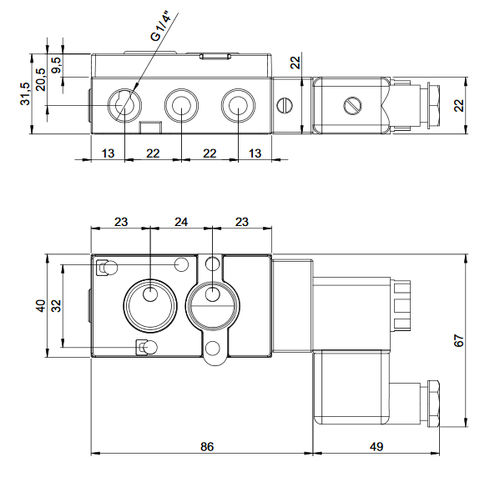

Luftanschluss Air supply port – G 1/4′
Nennweite/Arbeitsdmck/Durchfluss Nominal diameter/Air pressure/Row rate – 5.5 mm / 2 – 10 bar / 950 l/min
Material Ventilkorpcr Valve body material – Aluminium eloxiert Anodised aluminum
Material Kolben/Dichtungen/Schrauben Piston/sealing/screw material – Cdelstahl 1.4305 / NBR / Cdelstahl 1.4301 Stainless Steel AISI 303 / NBR / Stainless Steel AISI 304
Handnotbetâtigung Manual override – Selbstsichernd, Messing Self locking, brass
NAMUR-Platte NAMUR plate – NAMUR. PA6 30%GF, mit Abluftruckführung NAMUR. PA6 30% fiber glass. exhaust air feedback circuit
Medium Medium – Gereinigtc. geolte/nicht-geoltc Druckluft Cleaned, lubricated /non-lubricated compressed air
Druckluft-Qualitat Compressed air-quatity – Stufe 5 nach ISO 8573 1 Level 5 according to ISO 8573 1
Anwcndung Application – Einfach- und doppeltwirkende pneumatische Schwenkantriebe Spring retum and double acting pneumatic actuators
Geràtestecker Plug connector – Form B. M 16×1.5 (Kabeldurchmesser 5 6 mm) (cable diameter 5 6 mm)
توضیحات:
Control
pilot-operated
Ports/positions
5-way
Medium
air
Body
NAMUR, double, stainless steel
Other characteristics
ISO, locking, exhaust, plug, piston, spool, spring
DN
5.5 mm(0.217 in)
Voltage
Min.: 12 VMax.: 230 V
Temperature
Min.: -20 °C(-4 °F)Max.: 50 °C(122 °F)
Pressure
Min.: 2 bar(29 psi)Max.: 10 bar(145 psi)
