نام محصول:
شیر برقی

نام انگلیسی:

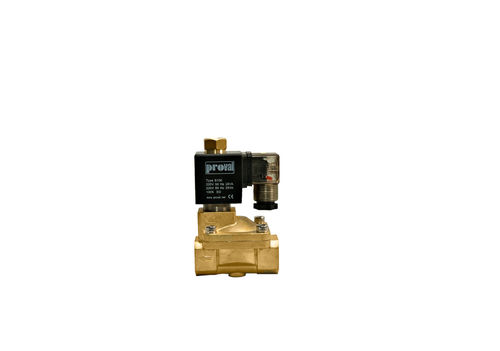

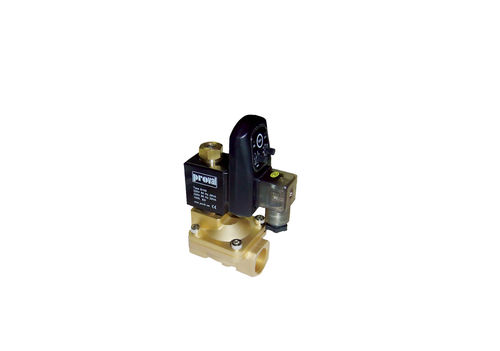

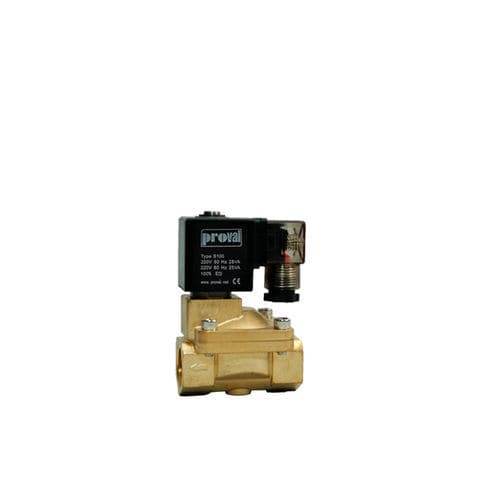

Pilot-operated solenoid valve S100

برند:
Doruk Endustri Ltd.

مشخصات:
PROVAL S100 Series general purpose solenoid valves are used in water, air, oils and other industrial applications limited with the diaphragm material and pressure range. Viton (FKM) diaphragms allows S100 solenoid valves to be used in partially chemical corrosive lines.

Pilot operated solenoid valves requires min 0.5 bar line pressure to ensure 100% leak free operation. S100 solenoid valves are available as NO – Normally Open and NC – Normally Closed versions.

LED type connectors provides continuous visual indication of valve open/close position.

توضیحات:
Control
pilot-operated

Ports/positions
2-way

Function
normally closed, normally open

Medium
for water, air, oil

Body
threaded, brass

Other characteristics
corrosion-resistant, diaphragm

DN
Max.: 2 inMin.: 0.25 in

Voltage
220 V

Temperature
Max.: 150 °C(302 °F)Min.: -10 °C(14 °F)

Pressure
Max.: 16 bar(232.1 psi)Min.: 0 bar(0 psi)
