نام محصول:
شیر برقی
نام انگلیسی:
Pilot-operated solenoid valve ICLX series
برند:
DANFOSS Refrigeration & Air Conditioning
مشخصات:

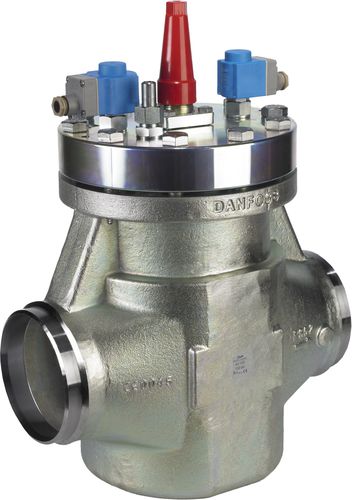

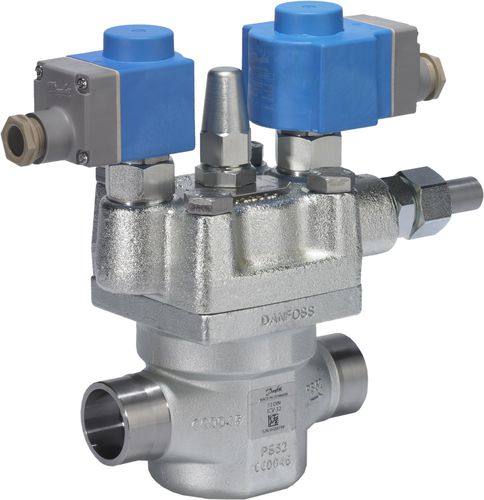

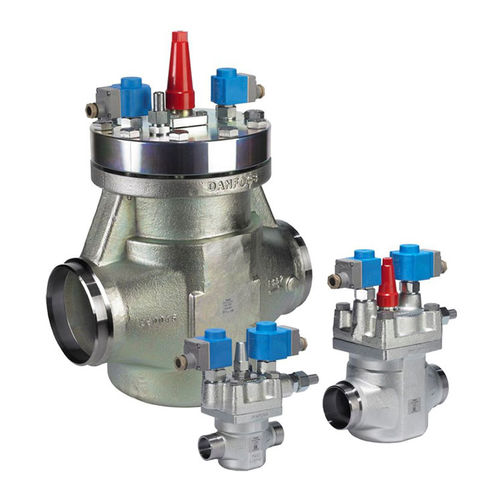

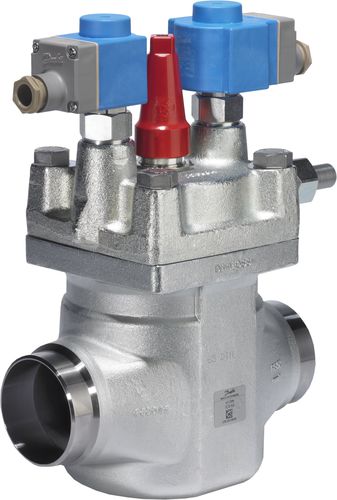

The new ICLX valves are part of the Danfoss ICV Flexline™ series. The ICLX valves are 2-step servo-operated main valves with pilot solenoid valves.
ICLX valves can be used in suction lines for opening against high differential pressure, for instance after hot gas defrosting in large industrial refrigeration systems with all normal, non-flammable refrigerants, including ammonia and CO₂.
The ICLX valves feature all the characteristics of ICV Flexline™ valves and offer safe, flexible and convenient installation, operation and service. For instance, the standard ICV Flexline™ housing makes the ICLX valves a true plug and play solution with easy and time-saving switch between the functions.
Features and benefits
Full, hermetic external tightness preventing leakage
Normal closed type minimizes the system risk
Direct weld eliminates pipe flanges to increase system safety and simplify installation
Outstanding flow characteristic, ideal for systems where low pressure drop is required
Simple installation
No hot gas leakage to the suction line due to teflon valve plates and gas tight piston rings
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
normally closed
Medium
for gas
Body
line
Other characteristics
with differential pressure controller, for refrigerants
DN
Min.: 32 mm(1.26 in)Max.: 150 mm(5.906 in)
Temperature
Min.: -60 °C(-76 °F)Max.: 120 °C(248 °F)
Pressure
28 bar, 40 bar, 52 bar(406.1 psi, 580.2 psi, 754.2 psi)
