نام محصول:
شیر برقی
نام انگلیسی:
Electric valve ICM Flexline™
برند:
DANFOSS Refrigeration & Air Conditioning
مشخصات:

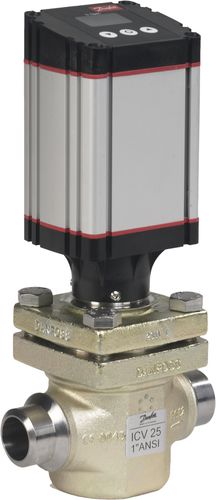

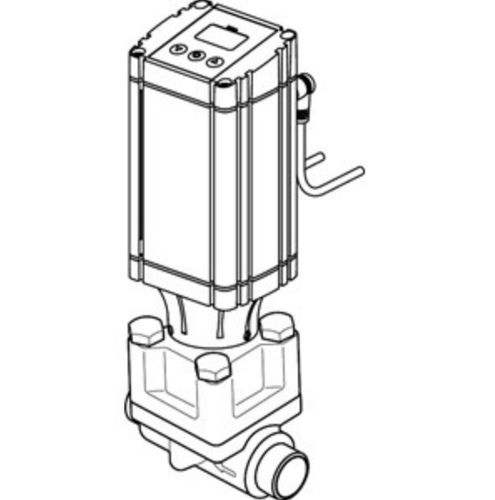

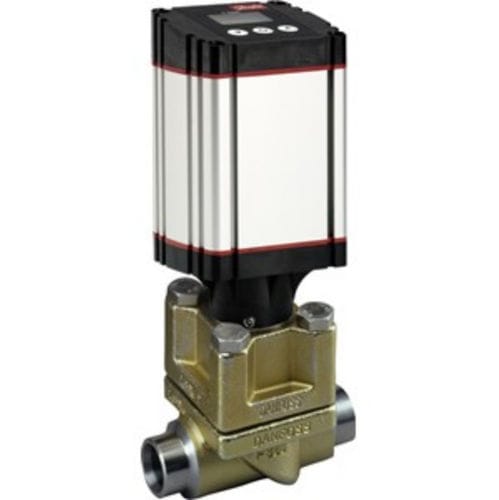

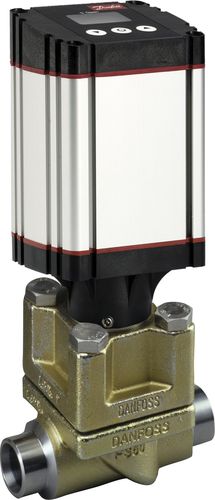

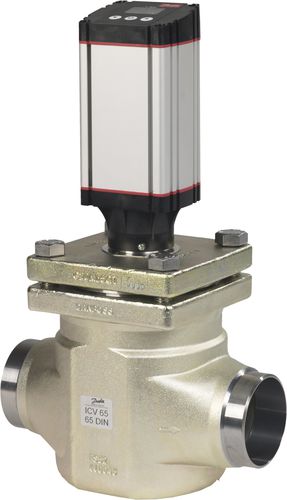

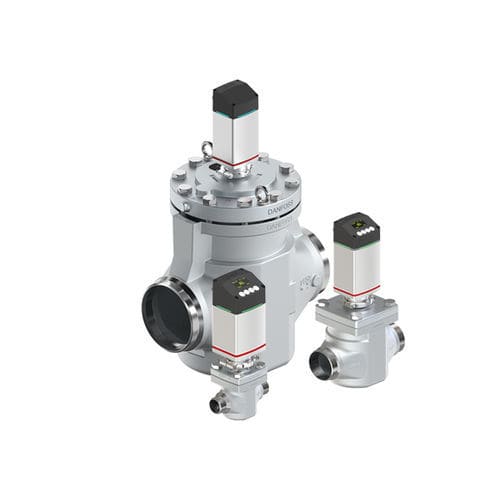

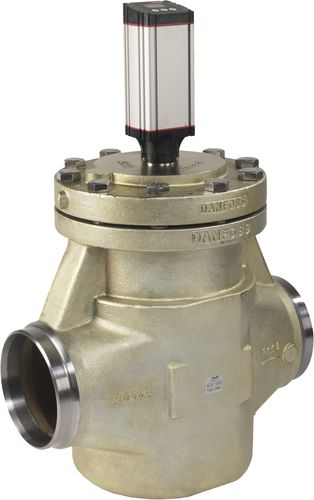

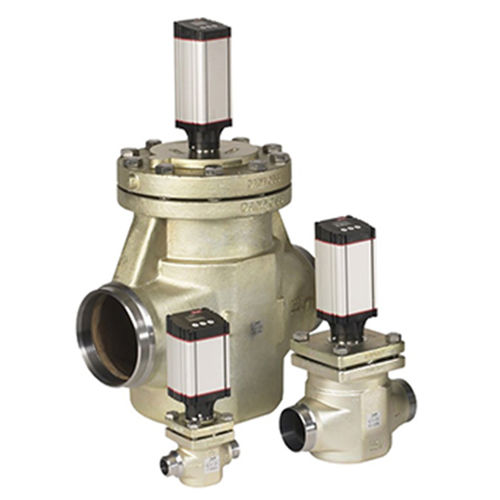

The ICM motor operated valves from Danfoss ICV Flexline™ series are quick and simple to handle, install and service due to their low weight and compact design. The valve is designed to regulate the expansion process in liquid lines and to control pressure or temperature in dry and wet suction lines and hot gas lines.
The ICM valves are ready for the refrigerants of the future, designed and tested to withstand a maximum working pressure of up to 52 bar (754psi) in a media temperature range of –60 to +120°C [–76 to +248°F]. This makes them suitable for the natural refrigerant CO₂, ammonia and other future high pressure refrigerants.
The ICM motor valve is available as a complete valve and as parts programme.
Features and benefits
Fast and easy handling, installation and service
Low weight and compact design
Suitable for natural, high-pressure refrigerants, e.g. CO₂
Second-to-none control characteristics
Provides high suction pressure and better COP for energy savings
توضیحات:
Operation
electric
Function
for control, pressure-control, temperature control
Media
for gas
Body
compact, steel
Applications
process, liquids, motor, actuator
Associated function
expansion
Other characteristics
compact, high-pressure, with operating handle, motor-driven, for refrigerants
DN
Max.: 150 mm(5.906 in)Min.: 20 mm(0.787 in)
Pressure
52 bar(754.2 psi)
Temperature
Max.: 120 °C(248 °F)Min.: -60 °C(-76 °F)
Flow rate
Max.: 370 m³/h(13,066.43 ft³/h)Min.: 0 m³/h(0 ft³/h)
