نام محصول:
شیر برقی

نام انگلیسی:

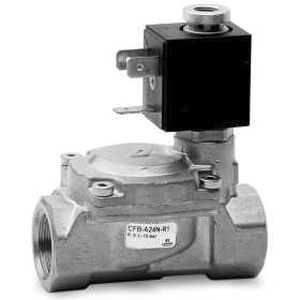

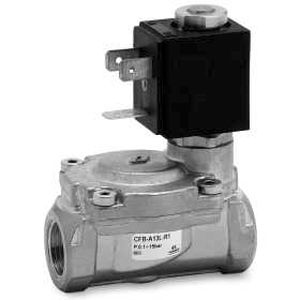

Pilot-operated solenoid valve CFB series

برند:
CAMOZZI AUTOMATION

مشخصات:
» Solenoid valves for air and water

» Great reliability over time, even in heavy working conditions

Series CFB solenoid valves for general purpose are available in the NC and NO version, 2/2 and 3/2-way.

Special versions are available on demand for the protection against the water hammer or with specific traitments for the interception of aggressive fluids.

The valve function is determined by a poppet or by a diaphragm with operation direct or indirect.

Different versions are available according to the nominal diameter and to the threaded ports, as shown in the following tables. They can thus satisfy various requirements in terms of flow rates and working pressures.

توضیحات:
Control
pilot-operated

Ports/positions
3-way

Function
NC, NO

Medium
for water, air

Body
brass, IP65

Other characteristics
diaphragm, plug

DN
Min.: 1.4 mm(0.055 in)Max.: 50 mm(1.969 in)

Voltage
Min.: 12 VMax.: 230 V

Temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)

Pressure
Min.: 0 bar(0 psi)Max.: 22 bar(319.1 psi)
