نام محصول:
شیر برقی
نام انگلیسی:

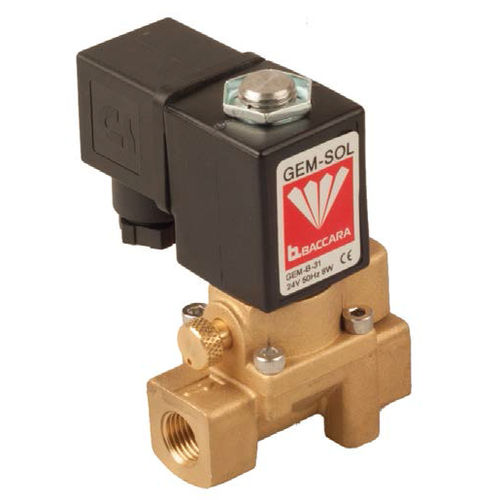

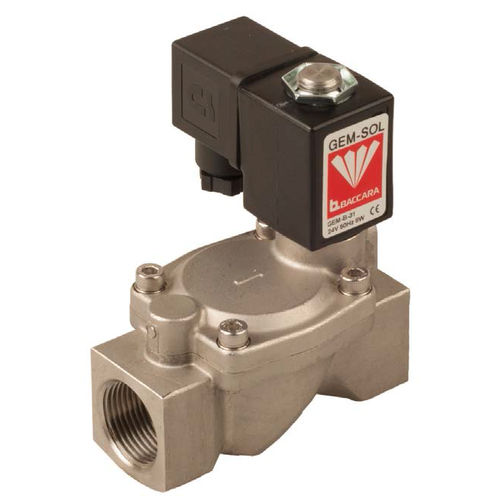

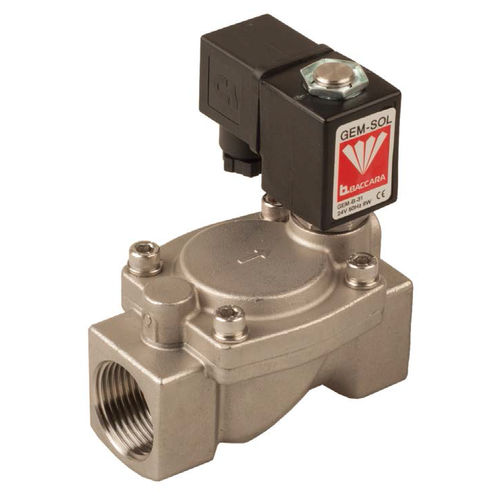

Pilot-operated solenoid valve GEM-S
برند:
BACCARA AUTOMATION
مشخصات:
•Ports size: 1/4″ – 1″ BSP & NPT
•Orifice size: 8.0 – 25.0 mm
•Manual override: Slot, Knob
•Body material: Brass, St.St
Function2 Way NC, NO
Ports size1/4″, 3/8″, 1/2″, 3/4″, 1″ BSP & NPT
Pressure rangeSee table
*Minimum pressure differential of 0.3 or 0.5 is required
Kv (l/min)See table
Temperature rangeFluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaManual override: NC/NO – Brass screw

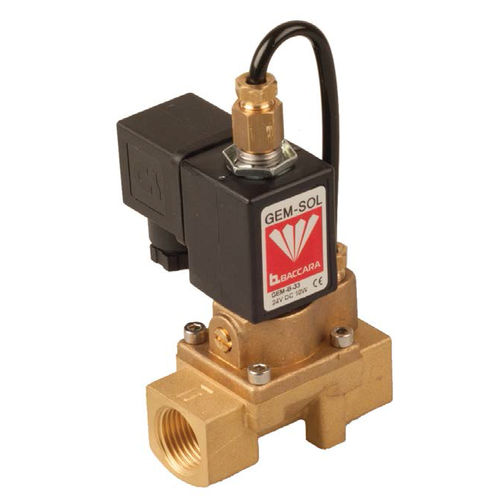

NOa* – manual override is not available
*pressure is supplied through the base
Main Valve: BrassStainless Steel AISI 316
Solenoid Operator: Stainless Steel AISI 300 & 400 series
Seals: NBR, FPM (Viton®), EPDM
Coil voltage• Voltage and power consumption – see table
• All Baccara coil voltages are ± 10% of nominal
Standard / Certification• UL 429
* Available on selected models only.
Please contact our technical sales department for details
Standard protection classIP65 with connector
* Option : IP68 (please refer to GEM-BP Coil
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC, NO
Body
brass, stainless steel, IP65
DN
Max.: 25 mm(0.984 in)Min.: 8 mm(0.315 in)
Voltage
Max.: 240 VMin.: 6 V
Temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Pressure
Max.: 20,000 mbar(290.1 psi)Min.: 300 mbar(4.4 psi)
