نام محصول:
شیر برقی 3 طرفه
نام انگلیسی:
3-way solenoid valve 100 EL
برند:
Dorot Control Valves
مشخصات:
Description

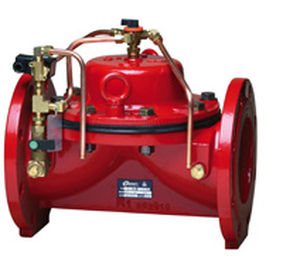

A 3-way solenoid valve, activated by an electric current or an electric pulse, opens or closes the main valve.
The standard valve is supplied in the “normally closed” position. The “normally open” position is optional.
Electric activation can be added to other control applications on request.
Features
• Low power electric activation
• Fast response
• Simple and reliable design
• Can be added as electric over-ride to any other control function
Purchase Specifications
The valve will be hydraulic, direct sealing diaphragm type, which allows inline maintenance. No stem, shaft or guide
bearing will be located within the water passage. The valve will be activated by the line pressure or by an external
hydraulic or pneumatic pressure. The valve position will be controlled by an electric solenoid valve. The valve and
the controls will be a Dorot Series 100 valve or similar in all aspects.
توضیحات:
Ports/positions
3-way
Function
NC, NO
Medium
for water
Other characteristics
diaphragm
