نام محصول:

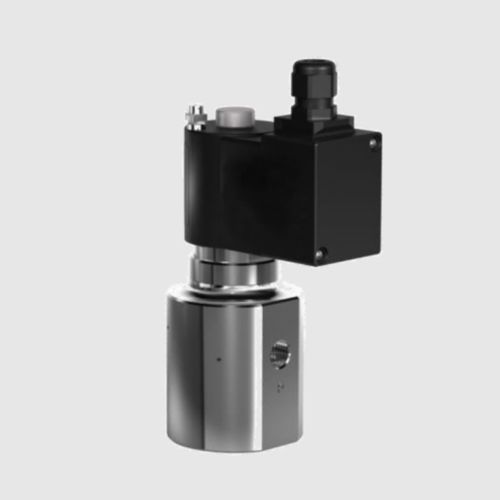

شیر برقی هیدروژن

نام انگلیسی:
Hydrogen solenoid valve Série 3/071

برند:
ALPHA AUTOMATISMES Sarl

مشخصات:
Series 3/071 – Solenoid valve for hydrogen and very high pressure applications

2/2-way solenoid valve with servo-controlled piston – ATEX

2/2 way valve

NC – Valve normally closed at rest

NO – Normally open valve (option)

Servo-controlled valve, assisted piloting (pressure difference required)

General :

– For high pressure applications up to 1000 bar

– Requires differential pressure

– Long service life

– High-quality materials

– Reliable, robust sealing elements

توضیحات:
Control
pilot-operated

Ports/positions
2-way

Function
NC, NO

Medium
air, for steam, for natural gas, for oxygen, for CO2, for liquified gas, for compressed natural gas, for hydrogen

Body
compact, threaded, compact, rugged, in-line, seat, modular, IP65, stainless steel

Process connection
G 1/4, G 1/2, G 3/8

Other characteristics
high-performance, high-pressure, IECEx, for compressed gas, electrically-operated, ATEX, for filling applications, for sour gas, chemical-resistant, corrosion-resistant, electromagnetic, rugged, variable-flow, for chemicals, for hazardous environments, with seal, for aggressive media, for hazardous fluids, piston, for nitrogen, multiple, waterproof, air-operated, for process gas, chemically inert

DN
8 mm(0.315 in)

Voltage
Max.: 230 VMin.: 12 V

Temperature
Max.: 80 °C(176 °F)Min.: -40 °C(-40 °F)

Pressure
Max.: 1,000 bar(14,503.8 psi)Min.: 5 bar(72.5 psi)
