نام محصول:

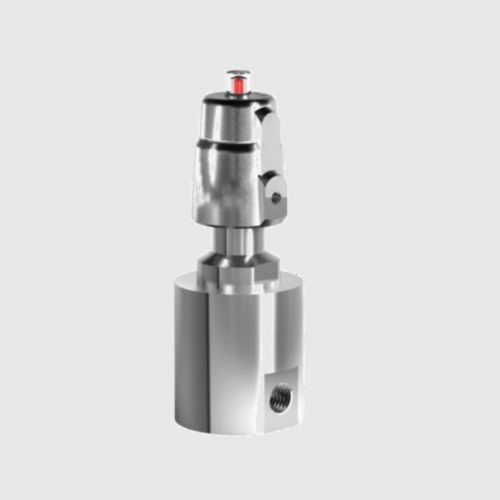

شیر برقی هیدروژن

نام انگلیسی:
Hydrogen solenoid valve Série 2/529PN

برند:
ALPHA AUTOMATISMES Sarl

مشخصات:
2/529PN series – High pressure valve for hydrogen – ATEX

2/2-way valve, with servo-controlled piston seal, pneumatically operated

NC – Valve normally closed at rest

NO – Valve normally open (option)

Power-operated valve, pilot-assisted (pressure difference required)

General :

– For high pressure applications up to 600 bar

– Requires differential pressure

– Long service life

– High quality materials

– Reliable and robust sealing elements

توضیحات:
Control
servo-assisted

Ports/positions
2-way

Function
NC, NO

Medium
for water, air, for steam, for natural gas, for oxygen, for CO2, for liquified gas, for compressed natural gas, for hydrogen

Body
threaded, rugged, seat, modular, waterproof, stainless steel

Process connection
G 1/2, G 3/4, G 1, G 1 1/2, G 2, G 1 1/4

Other characteristics
ATEX, high-pressure, high-performance, anti-corrosion, waterproof, air-operated, piston, with differential pressure controller, for chemicals, IECEx, chemically inert, rugged, for hazardous fluids, with seal, for explosive atmospheres, for filling applications, for nitrogen, for corrosive environments, pneumatically-operated, unloading, for sour gas, for aggressive media, pressure-compensated, for hazardous environments, for process gas, for corrosive fluids, for compressed gas

DN
Min.: 13 mm(0.512 in)Max.: 50 mm(1.969 in)

Voltage
Min.: 12 VMax.: 230 V

Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)

Pressure
Min.: 1 bar(14.5 psi)Max.: 600 bar(8,702.3 psi)
