نام محصول:
شیر برقی هیدروژن
نام انگلیسی:

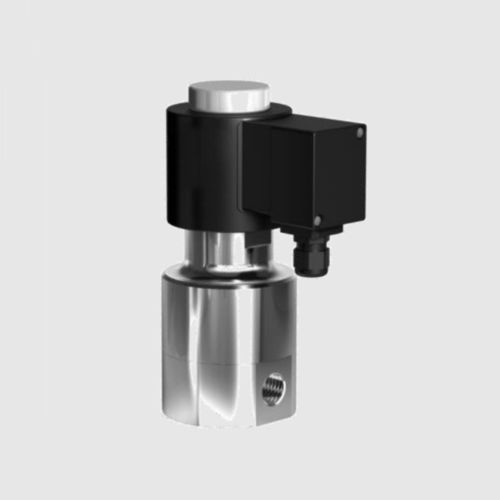

Hydrogen solenoid valve Série 2/529
برند:
ALPHA AUTOMATISMES Sarl
مشخصات:
Series 2/529 – Solenoid valve for hydrogen H2 and high pressure applications
2/2-way servo-operated piston valve – ATEX
2/2-way solenoid valve
NC – Valve normally closed at rest
NO – Valve normally open (option)
Servo-assisted valve, assisted piloting (pressure difference required)
General :
– For high pressure applications up to 450 bar
– Requires differential pressure
– Long service life
– High-quality materials
– Reliable, robust sealing elements
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC, NO
Medium
for water, air, for steam, for natural gas, for oxygen, for CO2, for liquified gas, for compressed natural gas, for hydrogen
Body
compact, compact, threaded, rugged, in-line, seat, modular, chemical-resistant, IP65, vertical, stainless steel
Process connection
G 1/4, G 1/2, G 3/4, G 3/8, G 1, G 1 1/2, G 2, G 1 1/4
Other characteristics
ATEX, high-pressure, wear-resistant, heavy-duty, electrically-operated, piston, high-performance, corrosion-resistant, electromagnetic, for sour gas, with differential pressure controller, waterproof, with seal, for compressed gas, rugged, chemically inert, chemical-resistant, for filling applications, for hazardous fluids, for explosive atmospheres, for chemicals, for hazardous environments, compact, for nitrogen, IECEx, for process gas
DN
Min.: 12 mm(0.472 in)Max.: 50 mm(1.969 in)
Voltage
Min.: 12 VMax.: 230 V
Temperature
Min.: -27 °C(-17 °F)Max.: 80 °C(176 °F)
Pressure
Min.: 1 bar(14.5 psi)Max.: 450 bar(6,526.7 psi)
