نام محصول:
شیر برقی مستقیم
نام انگلیسی:

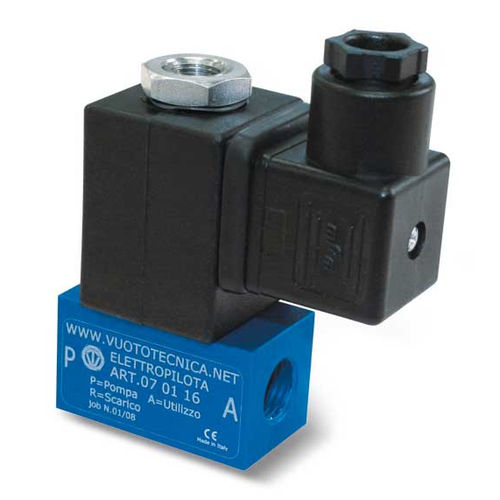

Direct-operated solenoid valve 070×16 series
برند:
VUOTOTECNICA
مشخصات:
3-Way vacuum solenoid pilot valves
These direct-drive valves have been specially designed for vacuum and are normally closed.
They are composed of an anodised aluminium body, where the connections and the passage orifices are located, and of an actuator which is activated by an electric coil.
The solenoid pilot valve shutter in NBR nitrile rubber or Vulkollan®, is an integral part of the actuator mobile core.
Both the orifices of the 2-way solenoid pilot valves have the same size, while those of the 3-way ones have a 3mm outlet diameter, obtained through the tube. The very low reaction time allows carrying out a very high number of cycles per minute.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum absorption:
0 V.A. with AC and 18 W with DC.
8 V.A. with AC and 6.5 W with DC. (07 00 16 – 07 00 20)
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
توضیحات:
Control
direct-operated
Ports/positions
3-way
Function
normally closed
Medium
for vacuum
Body
IP65, IP54, anodized aluminum
Other characteristics
standard
DN
0.25 in, 0.375 in, 0.5 in
Temperature
Min.: -5 °C(23 °F)Max.: 60 °C(140 °F)
Pressure
Min.: 1 mbar(0 psi)Max.: 1,500 mbar(21.8 psi)
