نام محصول:
شیر برقی مستقیم
نام انگلیسی:

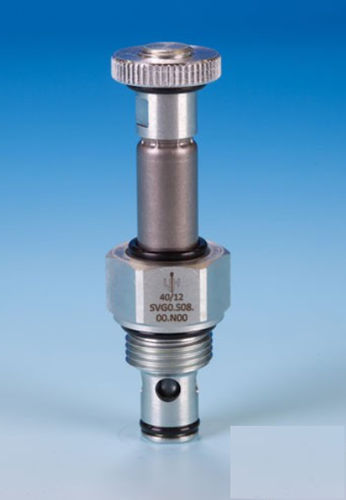

Direct-operated solenoid valve SVG0.S08
برند:
VIS HYDRAULICS SRL
مشخصات:

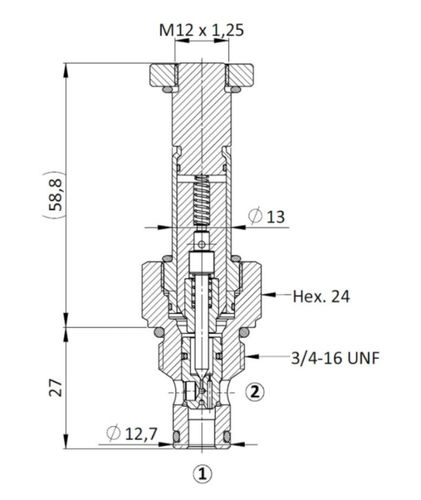

Solenoid operated, 2-way 2-positions, normally closed, piloted
poppet type, screw-in cartridge valve.
Typically used as a blocking or load holding device for high pressure circuits. When the coil is de-energized, the SVG0.S08 acts as check valve allowing free flow from 2 to 1, while blocking from 1 to 2.
When the coil is energized the poppet lifts and opens the 1 to 2 flow path. In this operation mode, flow from 2 to 1 is severely re- stricted.
The rigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides great reliability.
Low pressure drop thanks to optimized flow path.
Technical Features
All external surfaces are zinc plated and corrosion-proof.
All valve parts are made of high strength steel. Poppet is hardened and ground to ensure minimal wear and extended service life.
Coil seals protect the solenoid system.
Manual override options.

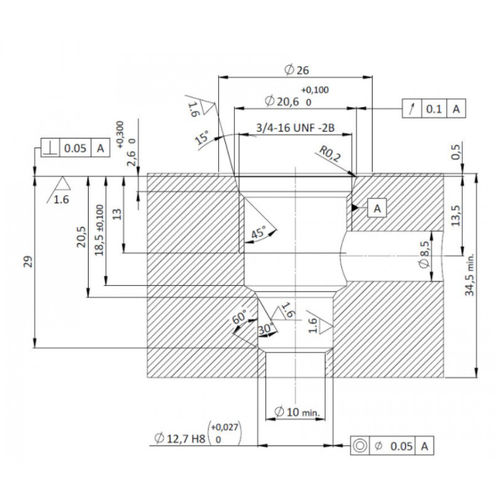

Industry SAE common cavity.
Maximum flow – 40 l/min
Response time – Energized 30 ms, De-energized 50 ms
fluids – Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt
Minimum pull-in voltage – 85% of nominal
orientation – no restrictions
installation torque – 40-45 Nm
seal kit code – SK.030 and SK.027 (coil)
weight – 0.110 kg
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
normally closed
Medium
for water
Body
screw-in, steel
Other characteristics
cartridge
DN
12.7 mm(0.5 in)
Voltage
24 V
Temperature
Max.: 110 °C(230 °F)Min.: -30 °C(-22 °F)
Pressure
350 bar(5,076.3 psi)
