نام محصول:

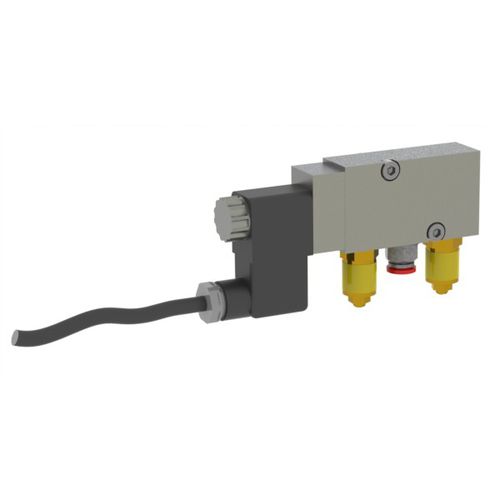

شیر برقی مستقیم
نام انگلیسی:
Direct-operated solenoid valve VTB9 series
برند:
Vapo Techniek B.V.
مشخصات:
CONSTRUCTION AND FUNCTION
• Elektro pneumatic spool valve operated with an permanent power signal and with an spring. According to Namur standard with an manual override. A filter or speed control can be placed direct on the exhaust port. Life time lubricated.
• SPECIFICATIONS
• Recomended media: Filtered and lubricated or filtered non-lubricated air
• Connections G 1/4″
• Nominal flow: from 1250 l/min
• Working pressure: 1,5…10 bar
• Materials: Body: anodised aluminium, internal parts brass and plastic, stainless steel pinion, Seals NBR
• Isolation: IP65 according DIN 40050
• Weight: 0.37 kg
VERSIONS
• 3/2 way valves
• VTB930 YI 24V/DC
• VTB930 YJ 24V/50-60Hz
• VTB930 YK 230V/50-60Hz
• VTB930 YL 24V/DC, Eex “m”
• VTB930 YM 230V/50-60Hz, Eex “m”
• VTB930 YN 24V DC EEx”ia”
• 5/2 way valves
• VTB950 AI 24V/DC
• VTB950 AJ 24V/50-60Hz
• VTB950 AK 230V/50-60Hz
• VTB950 AM 24V/DC, Eex “m”
• VTB950 AQ 230V/50-60Hz, Eex “m”
• VTB950 BQ 115V/50Hz
• VTB950 BG 12V/60Hz
• VTB955 DI 24V/DC
• VTB955 DJ 24V/50-60Hz
• VTB955 DK 230V/50-60Hz
• VTB955 DM 24V/DC, Eex “m”
• VTB955 DQ 230V/50-60Hz, Eex “m”
• VTB955 EQ 115V/50Hz
• – VTB955 EG 12V/60Hz
OPTIONS
• Eex “ia” coils – Led plug
• Different voltages and versions on request
• Dual-coil execution
توضیحات:
Control
direct-operated
Ports/positions
3-way
Medium
air
Body
NAMUR, IP65
Other characteristics
exhaust, spring, spool
Voltage
12 V, 24 V, 115 V, 230 V
Temperature
Max.: 70 °C(158 °F)Min.: -20 °C(-4 °F)
Pressure
Max.: 10 bar(145 psi)Min.: 1.5 bar(21.8 psi)
