نام محصول:
شیر برقی مستقیم
نام انگلیسی:

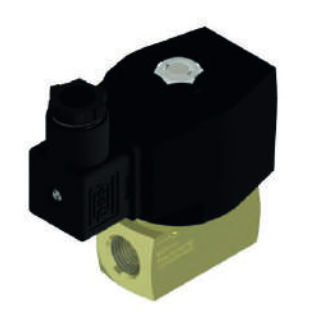

Direct-operated solenoid valve 13167
برند:
Thermoval
مشخصات:
Port size Female Thread 3/8” NPT (ANSI B2.1) – Input.
Female Thread 3/8” NPT (ANSI B2.1) – Output.
Orifice size 0 3,0 mm – (Kv 4,65) Flow factor.
Seal Teflon (PTFE) and Fluorocarbon elastomer (Viton)
Housing material Brass (ASTM B16). Piston/Pol^Seat Orifice – Stainless Steel (AISI430 Fr). Spring – Stainless Steel (AISI 302). Wire – Enameled Copper Class HR 200C (IEC 60317-8)
Media Oils at high temperature, solvent, Silicon fluid, air, LCP, NVC, Di-Ester lubricant based,Qxigen and steam (180°C).
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
air, oil, for LPG
Body
female, stainless steel, brass
Other characteristics
high-temperature, ANSI, piston
Valve plug seal material
Viton®, PTFE
DN
3 mm(0.118 in)
Voltage
220 V, 240 V
Temperature
200 °C(392 °F)
